Membrane is a tile underlayment and uncoupling membrane.

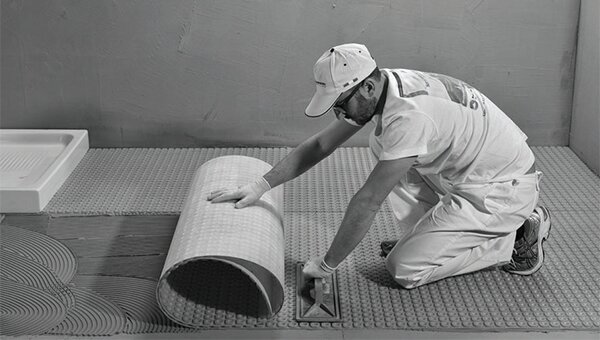

Membrane can replace a second layer of plywood/concrete board and reduces the risk of tile cracks caused by movement in the flooring assembly. When integrated with Cable, the Membrane system is a best-in-class integrated uncoupling, waterproofing, and floor heating solution. Membrane eases the installation of Cable by simplifying the installation process.

Note:

1. Cable resistance must be tested before, during and after installation for warranty coverage

2. All wiring connections should be completed by a certified electrician

Nuheat Membrane Specifications

Materials: Polypropylene sheet thermo-bonded to non-woven polypropylene fabric, 0.22 in. thick, 840 grams/m²

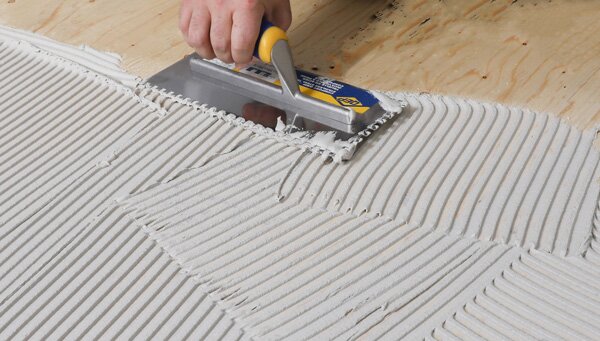

Subfloor bond: Apply modified or unmodified thinset with a 1/4" x 3/8” square- or u-notched trowel

Waterproofing: Yes, when used with waterproofing seam tape

Ratings: Robinson Floor Test (ASTM C627): ‘Extra Heavy’ rating, ANSI A118.12 System Crack Resistance: ‘High Performance’ rating

Max Ambient Temp.: 94°F (90°C)

Storage Conditions: Store in a cool and dry place avoiding direct sunlight and heat sources

Available Formats: Large Roll (161 ft2), Small Roll (54 ft2), Sheets (10.6 ft2)

Nuheat Peel and Stick Membrane Specifications

Materials: Vented polypropylene sheet with pressure sensitive adhesive and release liner, 0.22 in. thick, 840 grams/m²

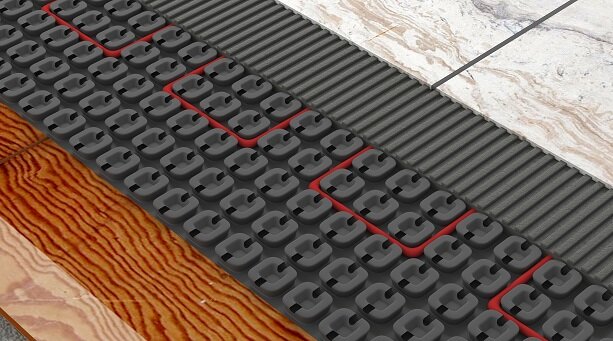

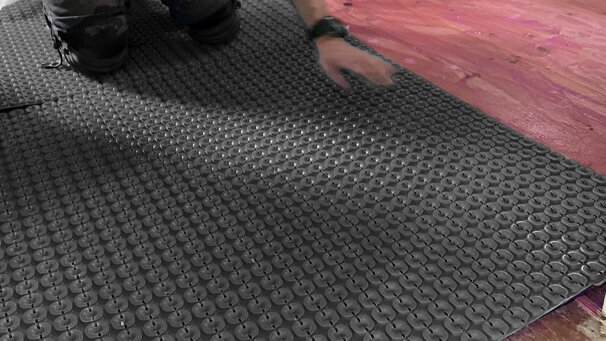

Subfloor bond: Prep surface with acrylic flooring primer and apply membrane to subfloor; additional mechanical bond is created when thinset passes through mortar vents during floor covering installation

Waterproofing: No

Ratings: Robinson Floor Test (ASTM C627): ‘Moderate’ rating, ANSI A118.12 System Crack Resistance: ‘High Performance’ rating

Max Ambient Temp.: 194°F (90°C)

Storage Conditions: Store in a cool and dry place avoiding direct sunlight and heat sources

Available Formats: Sheets (10.6 ft2)

Notes:

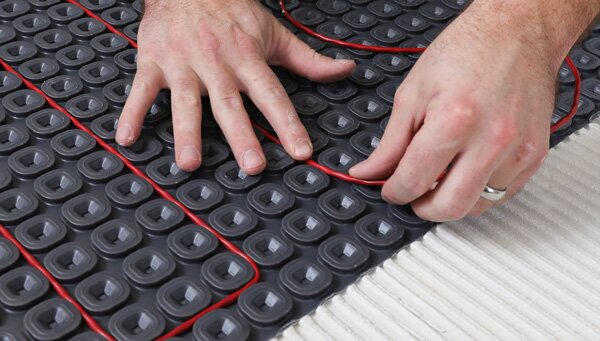

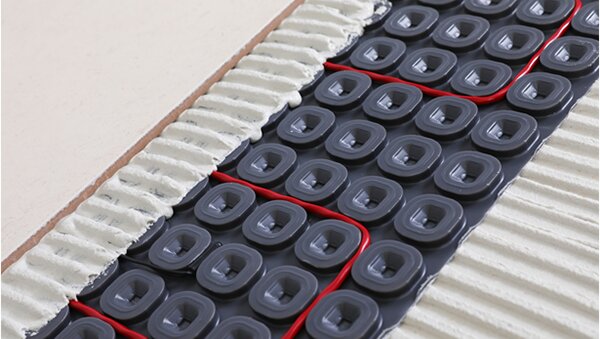

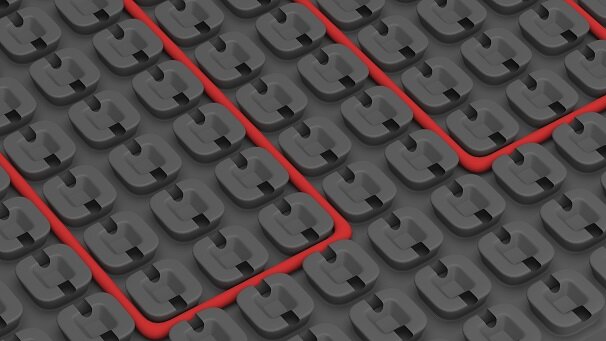

• Recommended nVent NUHEAT Cable spacing is alternating 2-3-2 pillar spacing which produces 12 W/ft2
• 2-pillar spacing produces 15 W/ft2, which is recommended for installations over concrete slab-on-grade or other areas that require more heat
• 3-pillar spacing produces 10 W/ft2, which is insufficient heat output for most applications
