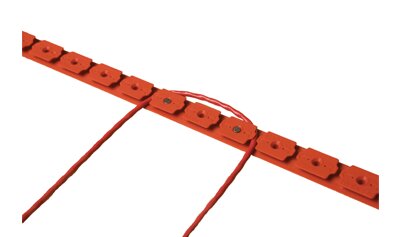

Nuheat Cable

The robust floor heating cable solution.

Rich text image

Nuheat Cable provides the most on-site flexibility.

Cable is a floor heating cable system that is configured on-site during installation. Cable kits come in 33 sizes. Choose the cable kit that is best suited for the size of room/area and configure on-site to provide floor heat in the desired areas of the room.

See our recommended list of materials for planning your project.

Note:

1. Cable resistance must be tested before, during and after installation to validate Nuheat warranties.

2. All wiring connections should be completed by a certified electrician.

Find an Installer

We work with leading industry professionals who are trained and experts at installing Nuheat products. Find one here today.

Find a Nuheat Certified Pro Installer

Request a Quote

Already have a project in mind? Click below to request a quote for your project.

Request a Quote

Installation

Sample Title

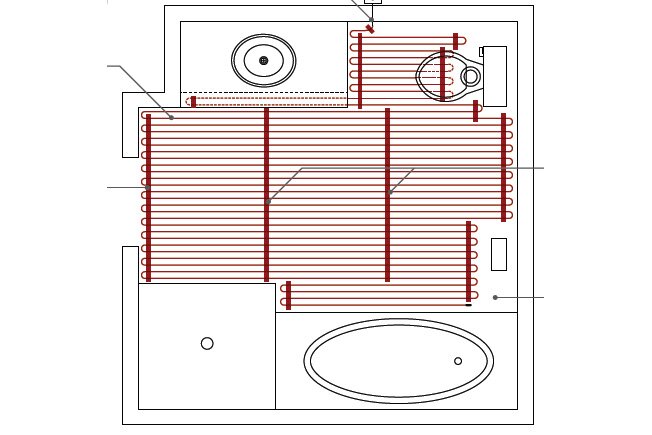

Step 1

Plan the heating cable installation before securing any part of the floor heating system to the subfloor.

Sample Title

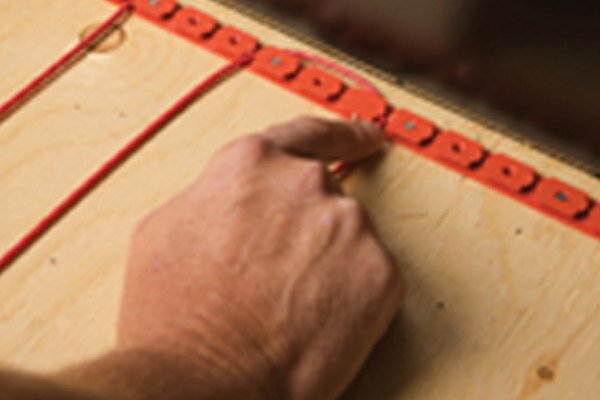

Step 2

Install the heating cable according to the Installation Layout Plan.

Sample Title

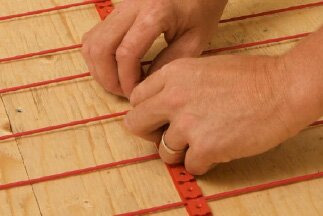

Step 3

Install stabilizing cable guides to ensure the heating cable does not float during the self-leveling process.

Sample Title

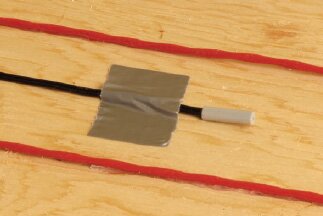

Step 4

Secure the floor-sensing probe. Route the thermostat probe up to the thermostat electrical box.

Sample Title

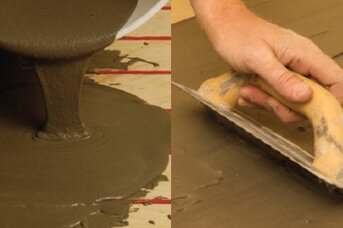

Step 5

Prepare the subfloor using self-leveling compound/thinset mortar as per manufacturer's instructions.

Technical

Material: Two single conductor Tefzel-coated resistance wires covered by a tin-plated copper braid and then coated with a durable copolymer (PVC) outer jacket

​Operating Voltage: 120 V and 240 V

​Power Output: 12 - 15 watts per square foot depending on spacing option chosen)

​Maximum ​Ambient temperature: 194°F (90°C)

​Heating Cable: 2-wire, grounded, twisted air with PVC outer jacket

​Cold Lead: 2-wire, 16-18 AWG plus ground braid layer; PVC outer jacket, 10 ft (3m) length

Visit our Download Library

Works Well With

Maximize your floor heating solution and check out these related products to optimize your installation.

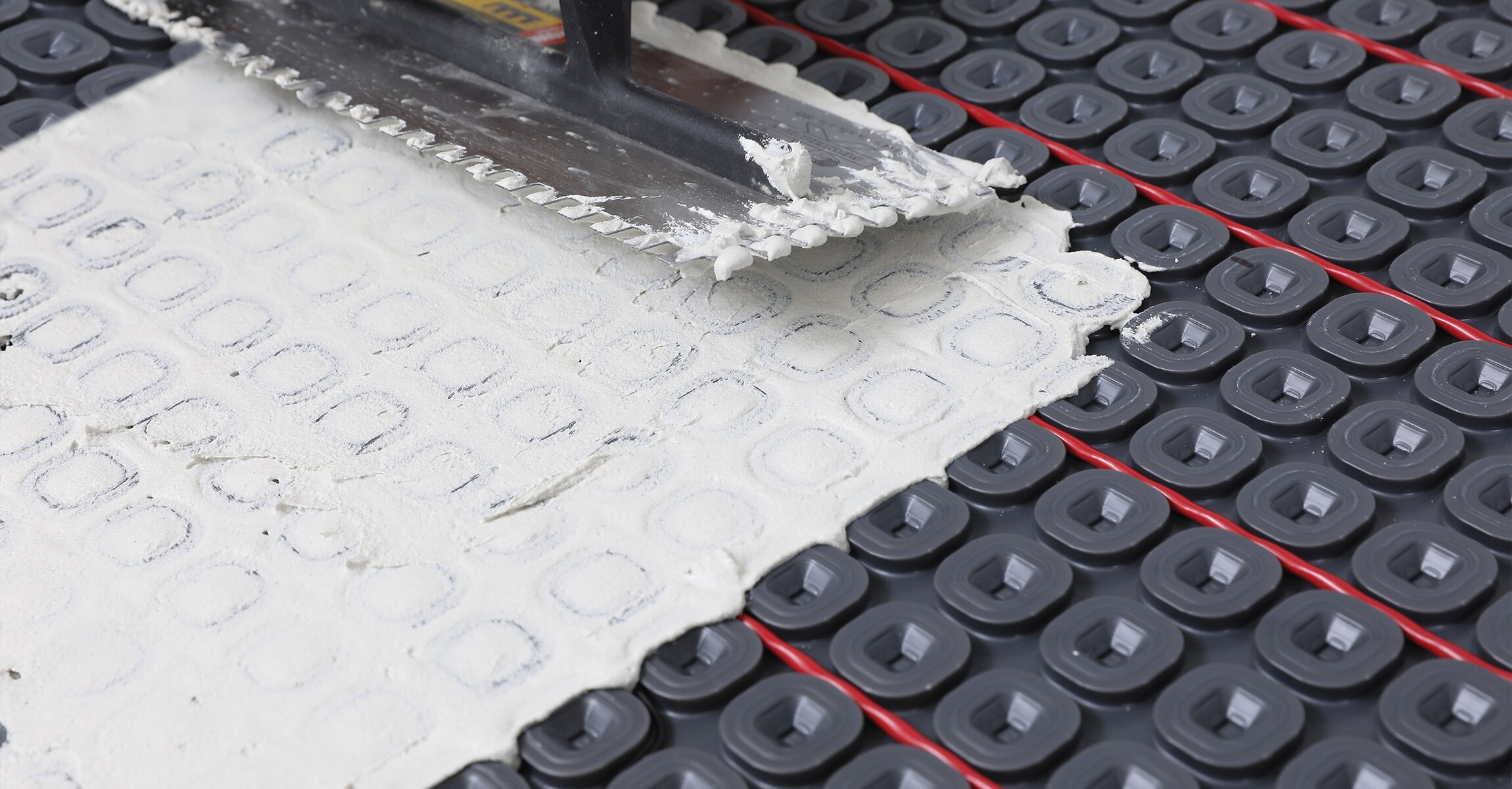

Nuheat Cable and Membrane

Nuheat Cable and Membrane

The integrated electric floor heating and uncoupling solution.

Learn More

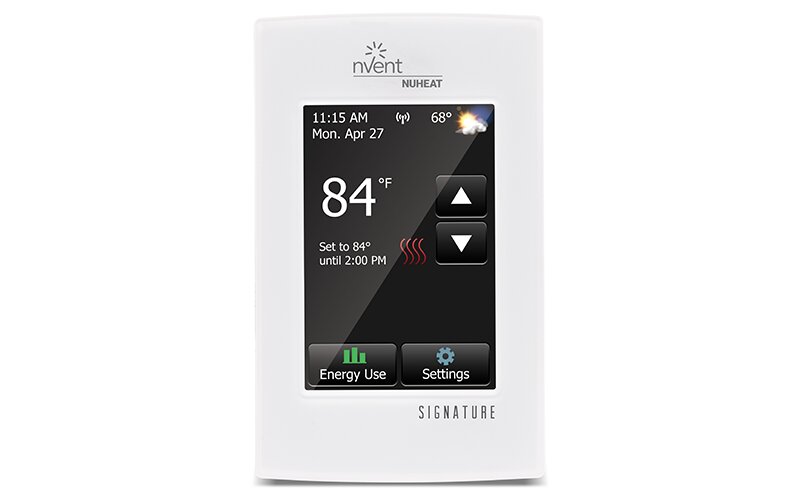

Nuheat Signature Thermostat
