Nuheat Mesh

The self-adhesive electric floor heating solution.

Rich text image

Mesh is an on-site adjustable "strip and roll" solution.

Mesh is best suited for square and rectangular shaped areas where some on-site flexibility is needed. The heating wire is attached to a roll of adhesive mesh material. During installation, the “roll” can be cut, turned, and adhered to the subfloor to provide floor heat in the desired areas of the room. Mesh kits comes in 13 sizes. Choose the mesh kit that is best suited for the size of the room/area and configure on-site to provide floor heat in the desired areas of the room.

See our recommended list of materials for planning your project.

Note:

1. Mesh resistance must be tested before, during and after installation to validate nVent Nuheat warranties.

2. All wiring connections should be completed by a certified electrician.

Installation

Sample Title

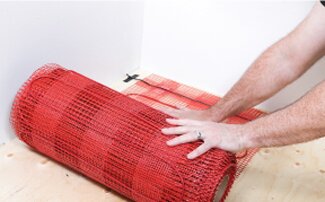

Step 1

Roll mesh onto the subfloor with the wire side down. Start the mesh installation from one corner of the room.

Sample Title

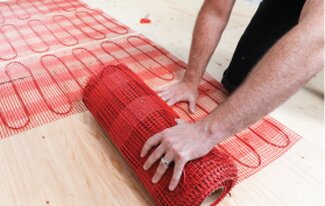

Step 2

Lay out and secure Mesh onto subfloor. To make a turn, cut the mesh as required (be careful not to cut/damage the heating wire). Separate heating wire from mesh to maintain heating coverage in small, angled, or difficult areas (if necessary).

Sample Title

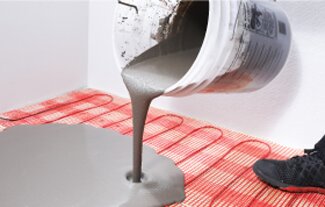

Step 3

Embed Mesh in mortar (self-leveling compound or latex-modified thinset).

Find an Installer

We work with leading industry professionals who are trained and experts at installing Nuheat products. Find one here today.

Under Construction

Request a Quote

Already have a project in mind? Click below to request a quote for your project.

Request a Quote

Technical

Material: Two single conductor Tefzel-coated resistance wires covered by a tin-plated copper braid and then coated with a durable copolymer (PVC) outer jacket. Heating cable is attached to a self-adhesive fiberglass mesh material

Operating Voltage: 120 V

Power Output: 12 watts per square foot

Maximum Continuous Exposure Temperature: 194°F (90°C)

Heating Cable: 2-wire, grounded, twisted pair with PVC outer jacket

Cold Lead: 2-wire, 18 AWG plus ground braid layer; 10 ft (3m) length
