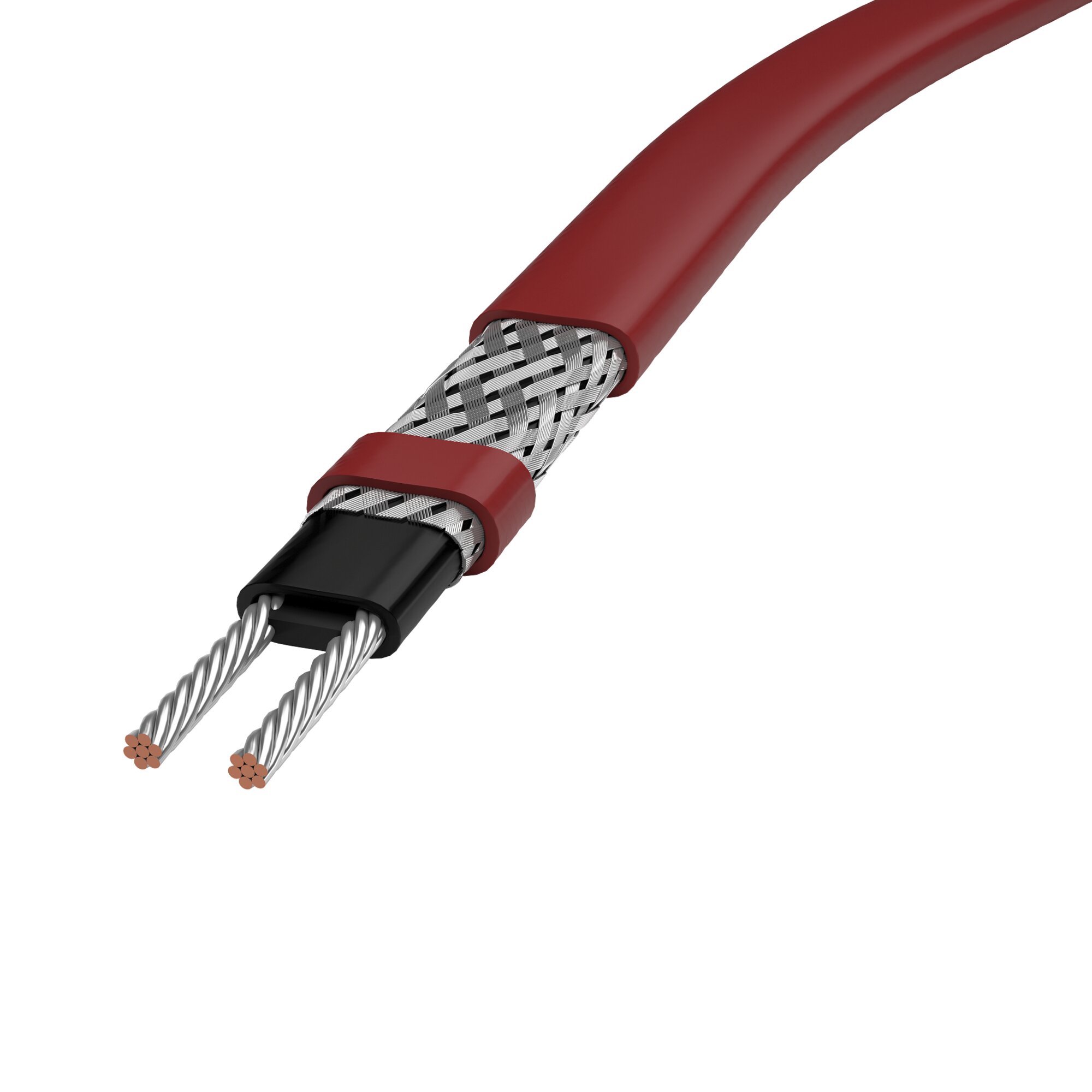

HTV Self-Regulating Heating Cable

Raychem HTV self-regulating heating cable is designed for freeze protection or process temperature maintenance of pipes and vessels up to 205°C continuously, with a maximum exposure temperature of 260°C. The HTV cable has a solid construction with a high power retention (HPR) heating core and pressure extruded electrical insulation. It is then integrated with a robust metallic braid and a chemically resistant fluoropolymer outer jacket.

Details

Features

  • High power retention (HPR) heating core
  • Power retention: At least 95% after 10 years
  • Design life: 30 years or more depending on application
  • Simplified design in hazardous area: T3 and T2
  • Longer circuit lengths due to larger cross section conductors
  • Fast installation: cut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits

Specifications

Area Classification: Non-Hazardous; Hazardous
Ground Path Type: Braid
Max Cumulative Hours for Intermittent Exposure: 2000 h
Max Intermittent Exposure Temperature, Power On/Off: 500 °F
Max Maintain or Continuous Exposure Temperature, Power On: 400 °F
Outer Jacket Material: High Temperature Fluoropolymer
