QuickNet Floor Heating Mat

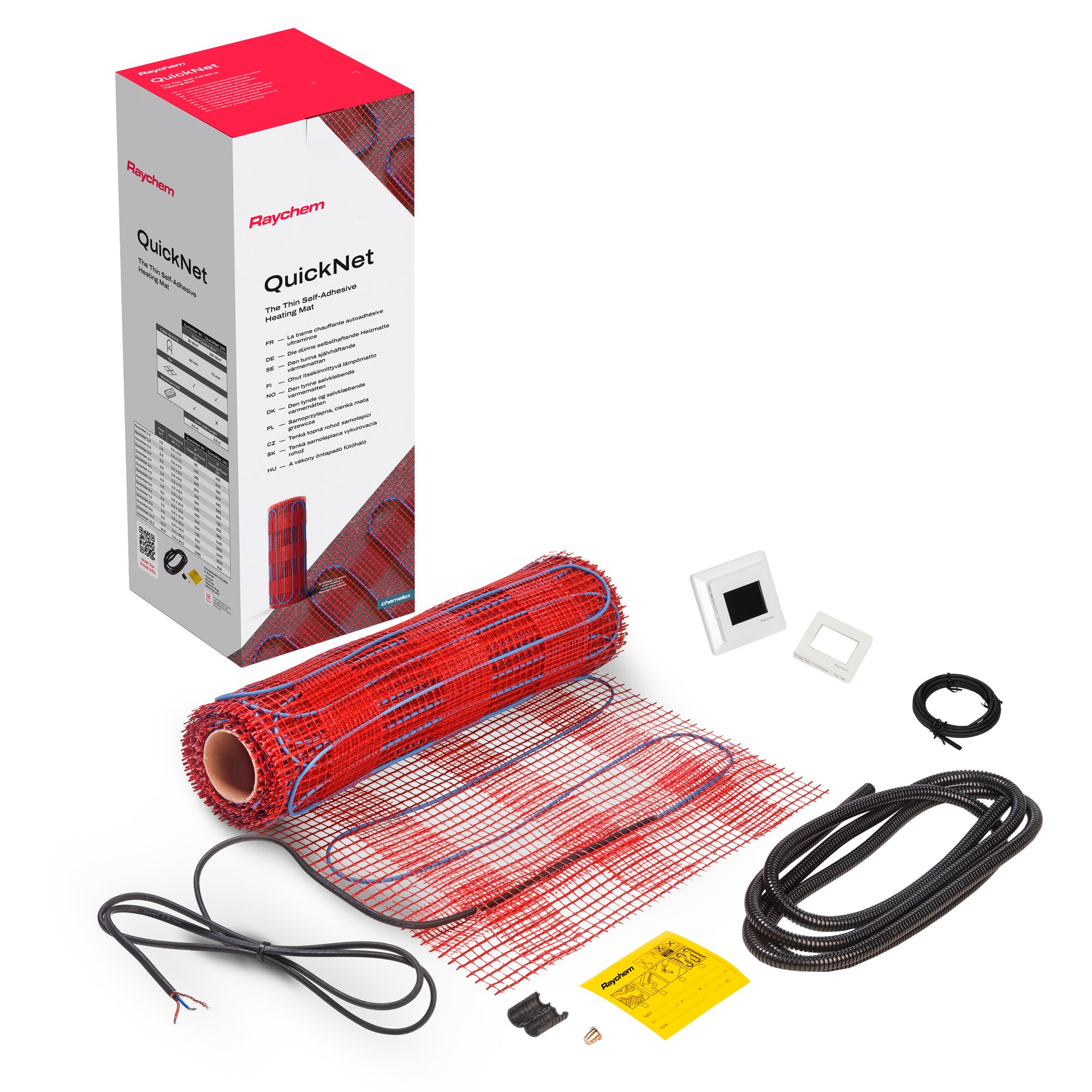

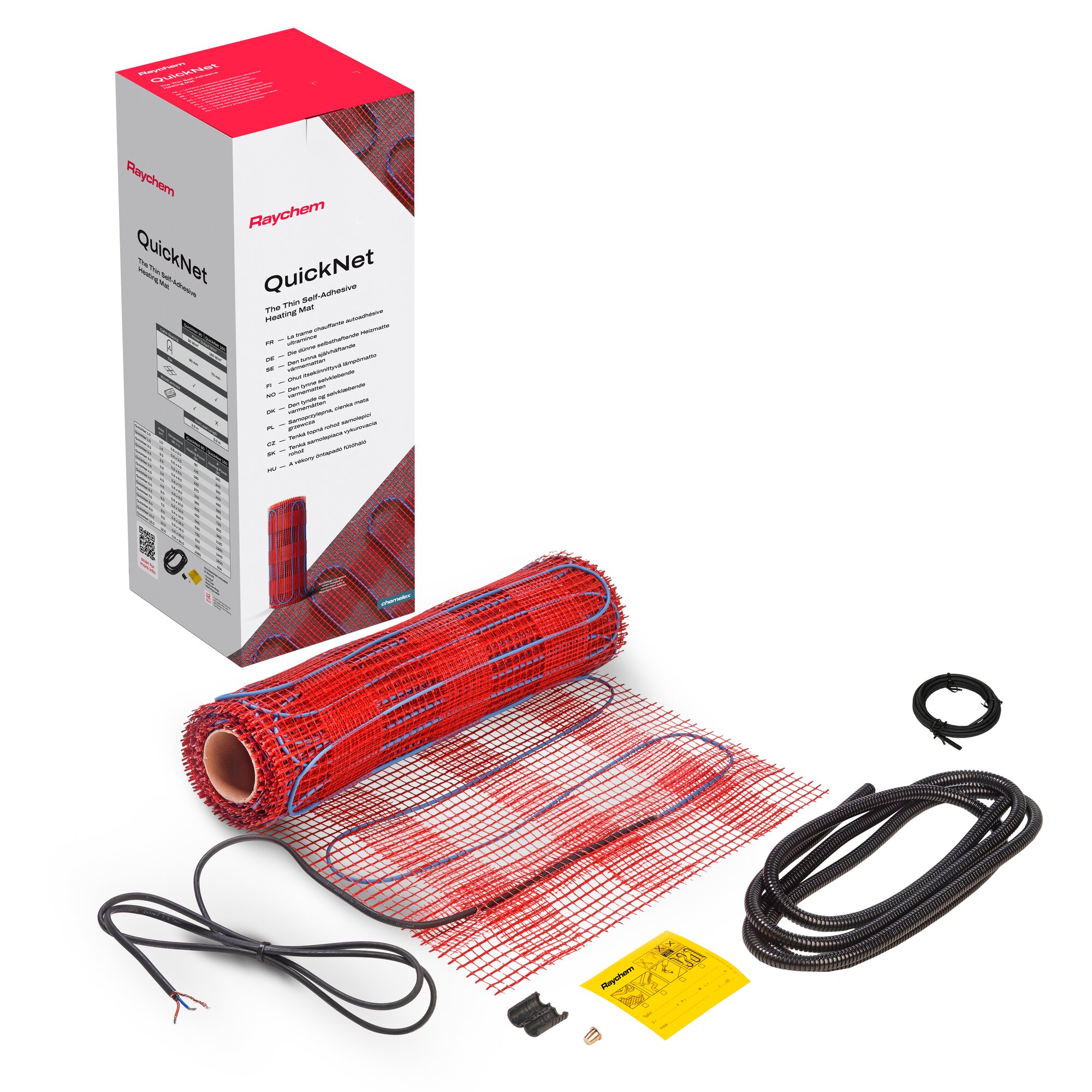

Raychem QuickNet is a electrical floor heating mat with 2 power output variants (90 W/m² and 160 W/m²) and available in kits with and without thermostat, ideal for renovation and suitable for new build. The product is self-adhesive and particularly suited for use under ceramic tiles or natural stone but also under parquet, engineered wood or vinyl floors, available in 1 m² to 12 m² sizes.

Details

Features

  • Easy installation: 3.5 mm thick, flexible, self adhesive, pre-terminated with power cable, simply roll out the mat, no need for return cable, packaged in ready to use boxes, installed directly in tile/natural stone adhesive
  • Safe to install on timber subfloors with 90W per m²

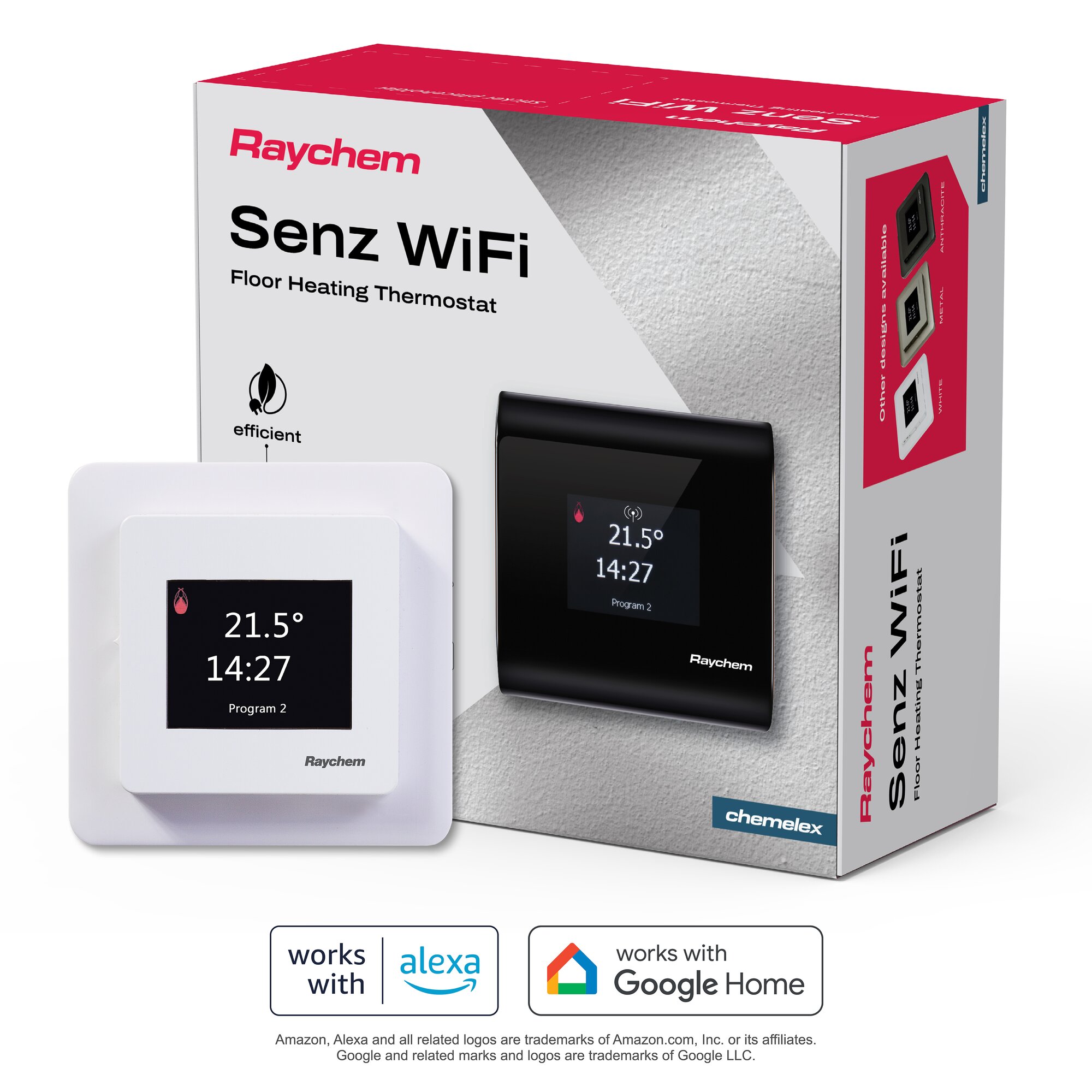

  • Available in EcoDesign compatible kits including the energy efficient and advanced SENZ WIFI touchscreen thermostat that can be controlled through the SENZ WIFI app or through voice control using Alexa or Google Assistant compatible smartspeakers.
  • Fast heat up time with 160W per m²
  • Safe and efficient operation
  • Reliable during long life: 12 to 20 year total care warranty available, no maintenance required

Specifications

Cold Lead Length: 8.2 ft
Color: Blue
Ground Path Type: Foil and Drainwire
Heating Cable Technology: Constant Wattage
Min Installation Temperature: 41 °F
Nominal Voltage: 230 V
Outer Diameter (OD): 0.137 in
Outer Jacket Material: LSZH
Thermostat Included: SENZ-WIFI
