Product

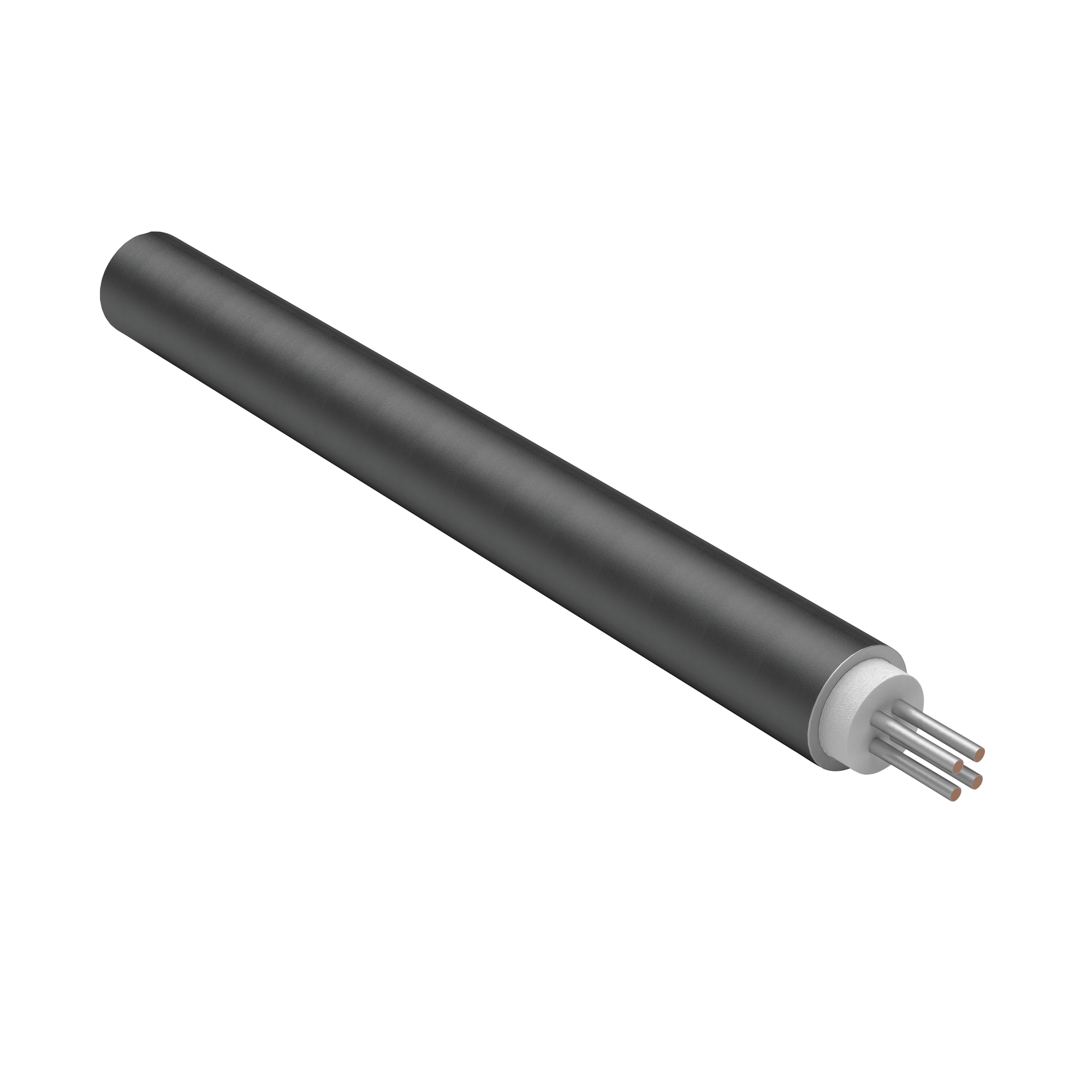

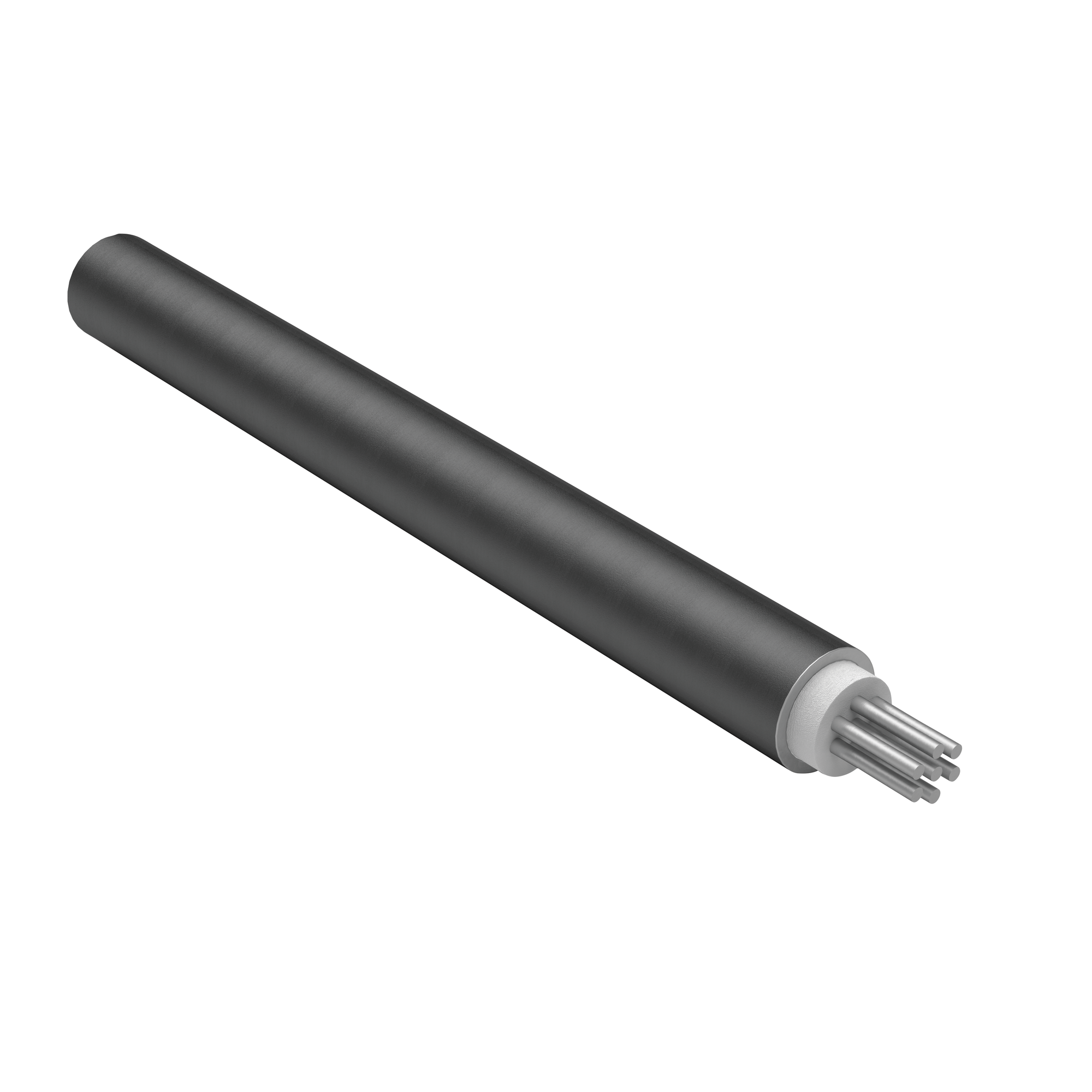

Configured MI Wiring Unit

Pyrotenax mineral insulated (MI) wiring units offer superior fire resistance under hydrocarbon and cellulosic fire conditions. Rated for hazardous and non hazardous environments. The technology is recognized for the ability to prevent migration of gas through the cable to potential ignition sources which can cause explosions. Suitable for applications with high continuous exposures detrimental to polymeric cable insulation materials. Factory terminated units providing enhanced reliability in critical applications.

Detaljer

Funktioner

  • Wiring cable units for critical circuits and life safety applications
  • Factory terminations enabling increased productivity for field labour
  • Fast installation: factory-terminated and fully tested, eliminating field termination and risk of rework
  • Reliable during long life: 30 year product warranty available
  • Various cable families affording different fire protection levels
  • Configured wiring units tailored to application demands

Specifikationer

Ledarmaterial: Copper, Nickel or Nickel Clad Copper
Ledarstorlek: 16 - 500 kcmil (1 - 250 mm2)
Riskområde Approved: Yes
Isoleringsmaterial: Magnesium Oxide
Sheath Material: Alloy 825, Copper
Spänningsklass: 0 - 600 V
