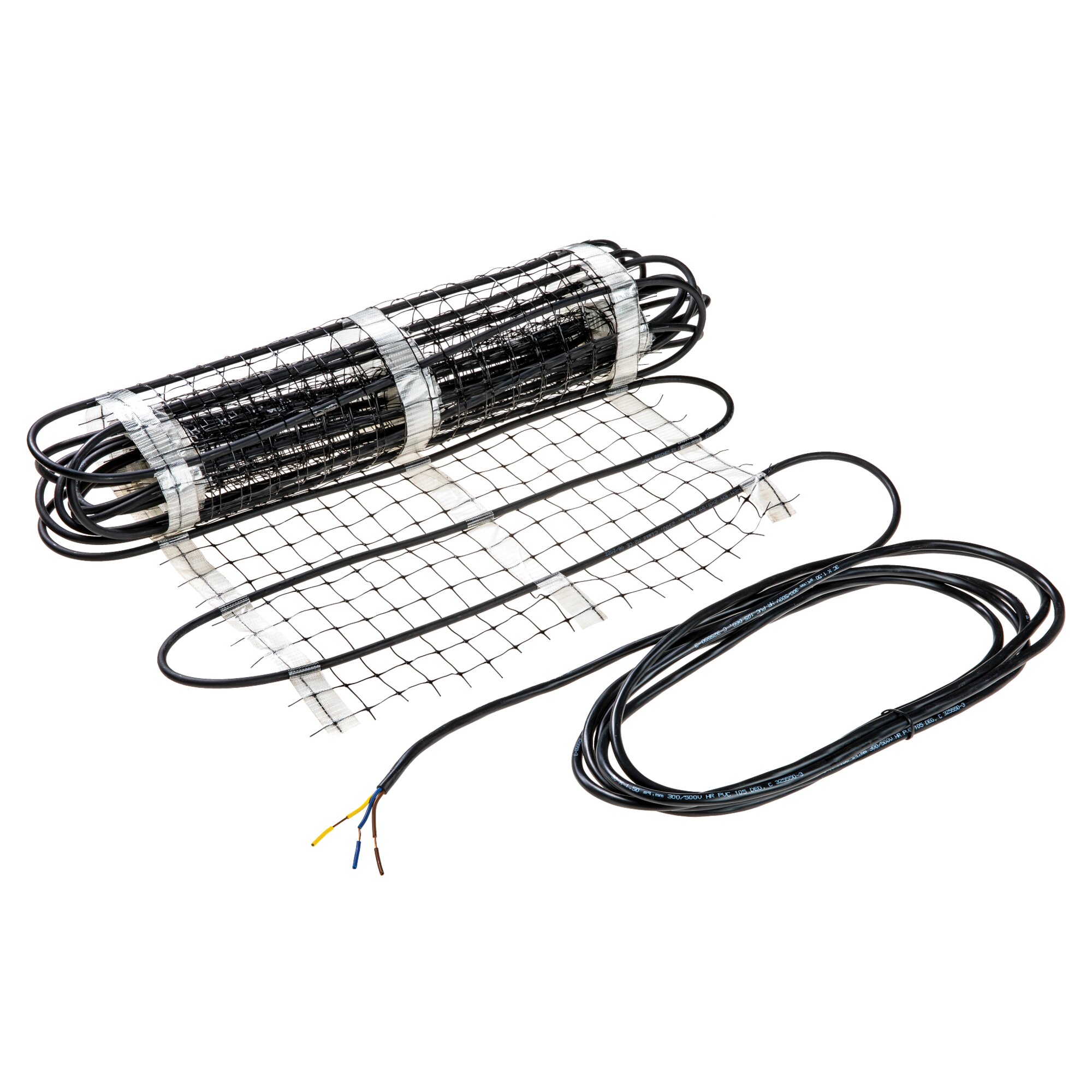

WinterGard Mat/Mesh

Raychem WinterGard Mat/Mesh (*) are constant output heating mats for fast and effective ramp and access way heating, to prevent snow and ice formation. Pre-defined power and pre-terminated, available in varying fixed lengths for installation on concrete, screed and asphalt.

Details

Features

  • Simple to design: pre-defined power output
  • Easy to install: pre-terminated mats, in various sizes , each with power cable
  • Safe and efficient in operation through advanced energy saving controls
  • Reliable and maintenance free
  • For embedding in concrete, sand bed or in asphalt

Specifications

Cold Lead Length: 16.4 ft
Color: Black
Conductor Quantity: 2
Ground Path Type: Foil and Drainwire
Heating Cable Technology: Constant Wattage
Max Continuous Exposure Temperature, Power Off: 149 °F
Min Installation Temperature: 23 °F
Nominal Power Output @ 120V: 50 W/ft²
Outer Diameter (OD): 0.27 in
Outer Jacket Material: Polyolefin
Supply Voltage: 240 - 240 V
