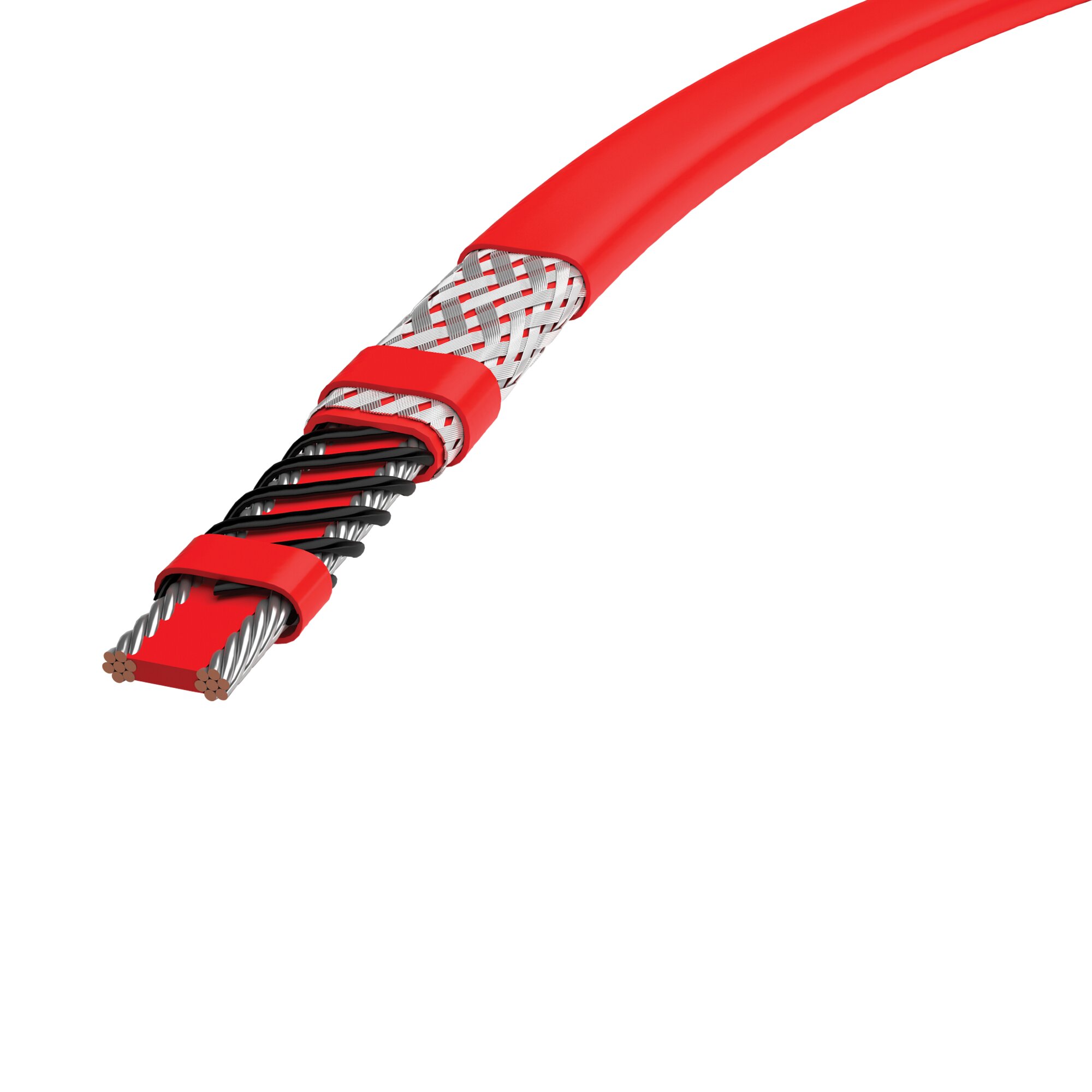

XTVR Self-Regulating Heating Cable

Raychem XTVR self-regulating trace heating cables are mainly used for freeze protection of pipes and vessels that require steam cleaning and process temperature maintenance, up to 302 °F/150 °C. They withstand intermittent exposure to 482 °F/250 °C. The fluoropolymer outer jacket (-CT) provides high chemical resistance against aggressive organics and corrosives.

Details

Features

  • High power retention (HPR) heating core
  • Power retention: At least 95% after 10 years
  • Design life: 30 years or more depending on application
  • Simplified design in hazardous area: T3 Unconditional or T6-T4 System classification
  • Longer circuit lengths due to larger cross section conductors
  • Fast installation: cut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits

Specifications

Area Classification: Non-Hazardous; Hazardous
Ground Path Type: Braid
Max Cumulative Hours for Intermittent Exposure: 2000 h
Max Intermittent Exposure Temperature, Power On/Off: 482 °F
Max Maintain or Continuous Exposure Temperature, Power On: 302 °F
Outer Jacket Material: High Temperature Fluoropolymer
