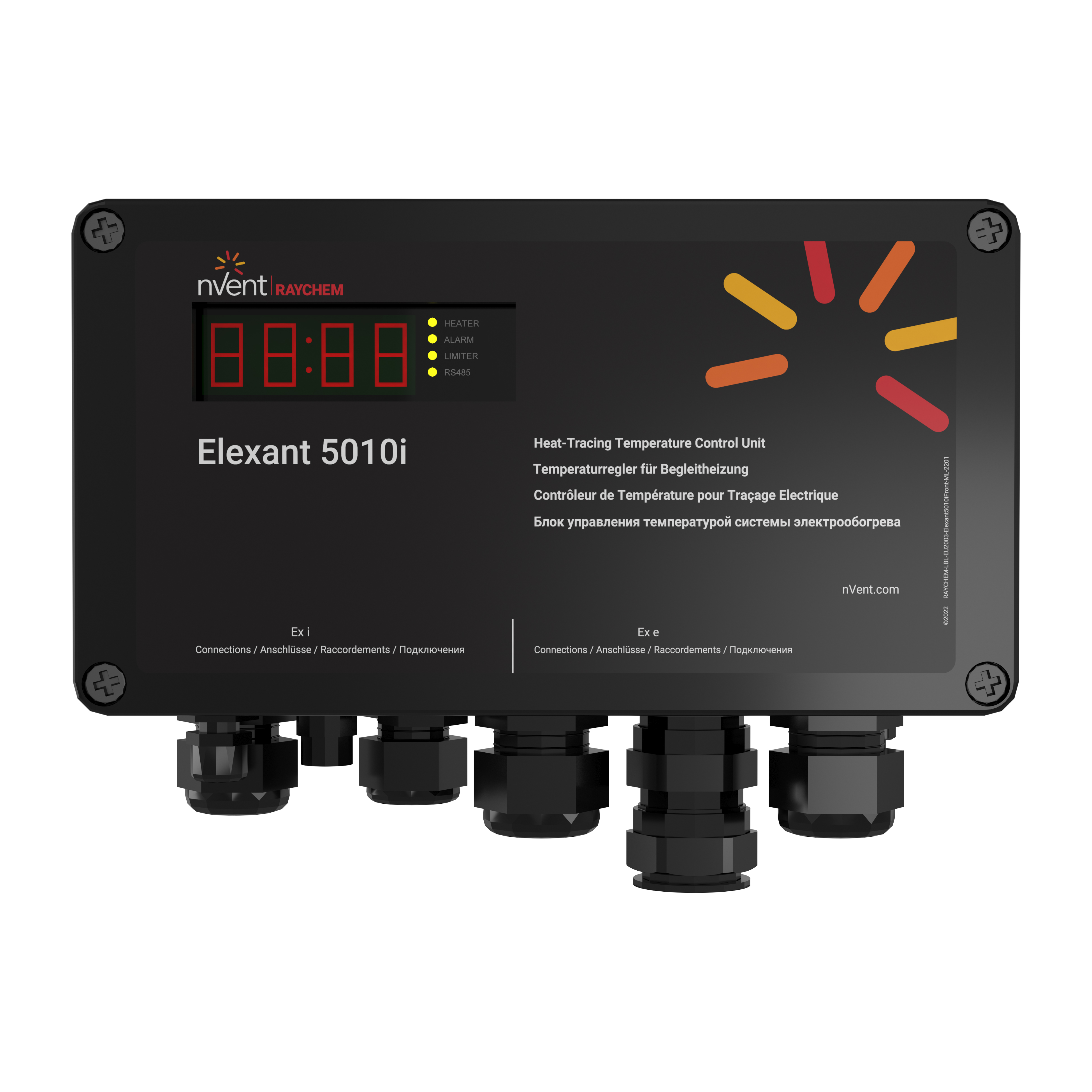

Elexant 5010i Field Controller

Raychem Elexant 5010i is an advanced field-mountable electronic temperature controller providing local control and central monitoring capabilities, used for single phase circuits up to 25 A and suitable for hazardous areas. The Elexant 5010i-LIM is provided with an integrated digital intelligent safety temperature limiter (SIL 2 device).

Details

Features

  • Easy to install, program and operate
  • Remote configuration and monitoring through the user interfaces TOUCH 1500 and NGC-UIT3, or via the Raychem Supervisor software
  • Local monitoring and configuration by using the hand-held wireless tablet
  • Extensive control, monitoring and alarm capabilities
  • Automated system check, reduces unexpected and expensive downtime of important pipelines
  • Alarm relay, RS-485 Modbus communication

Specifications

Controller Temperature Setting: 328 - 1292 °F
Current Rating: 25 A
Height (H): 4.72 in
Operating Temperature: -58 - 140 °F
Voltage Rating: 100 - 250 V
Width (W): 8.66 in
