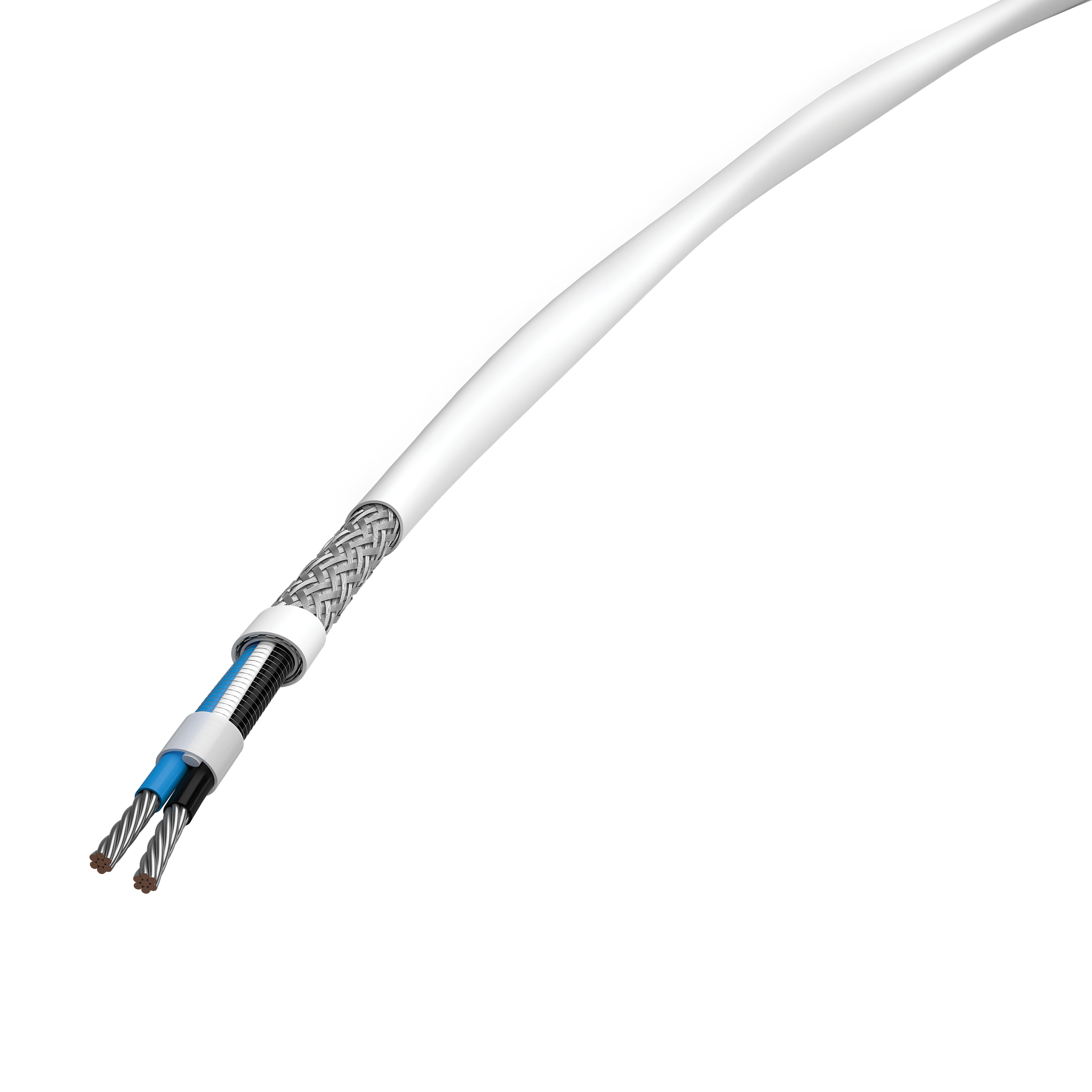

FHT Constant Wattage Parallel Heating Cable

Raychem FHT constant wattage parallel trace heating cables provide freeze protection and process temperature maintenance, up to 230 °C. They can withstand routine steam purges and intermittent exposure to 260 °C, available in 230 and 400 V and approved for use in hazardous areas. The fluoropolymer outer jacket (-CT) provides high chemical resistance against aggressive organics and corrosives.

Details

Features

  • Fast installation: round geometry, cut-to-length, meter markings, user-friendly connection kits
  • Safe and efficient in operation, energy saving technology
  • Extended circuit lengths, available in 230 V and 400 V versions
  • Reliable during long life: 10 year extended product warranty available, maintenance free

Specifications

Area Classification: Hazardous
Ground Path Type: Braid
Max Continuous Exposure Temperature, Power Off: 500 °F
Min Bending Radius: 0.98 in
Min Clearance: 0.97 in
Min Installation Temperature: -76 °F
Nominal Cold Lead/Heating Zone Length: 8.2 ft
Outer Diameter (OD): 0.3 in
Outer Jacket Material: PFA
