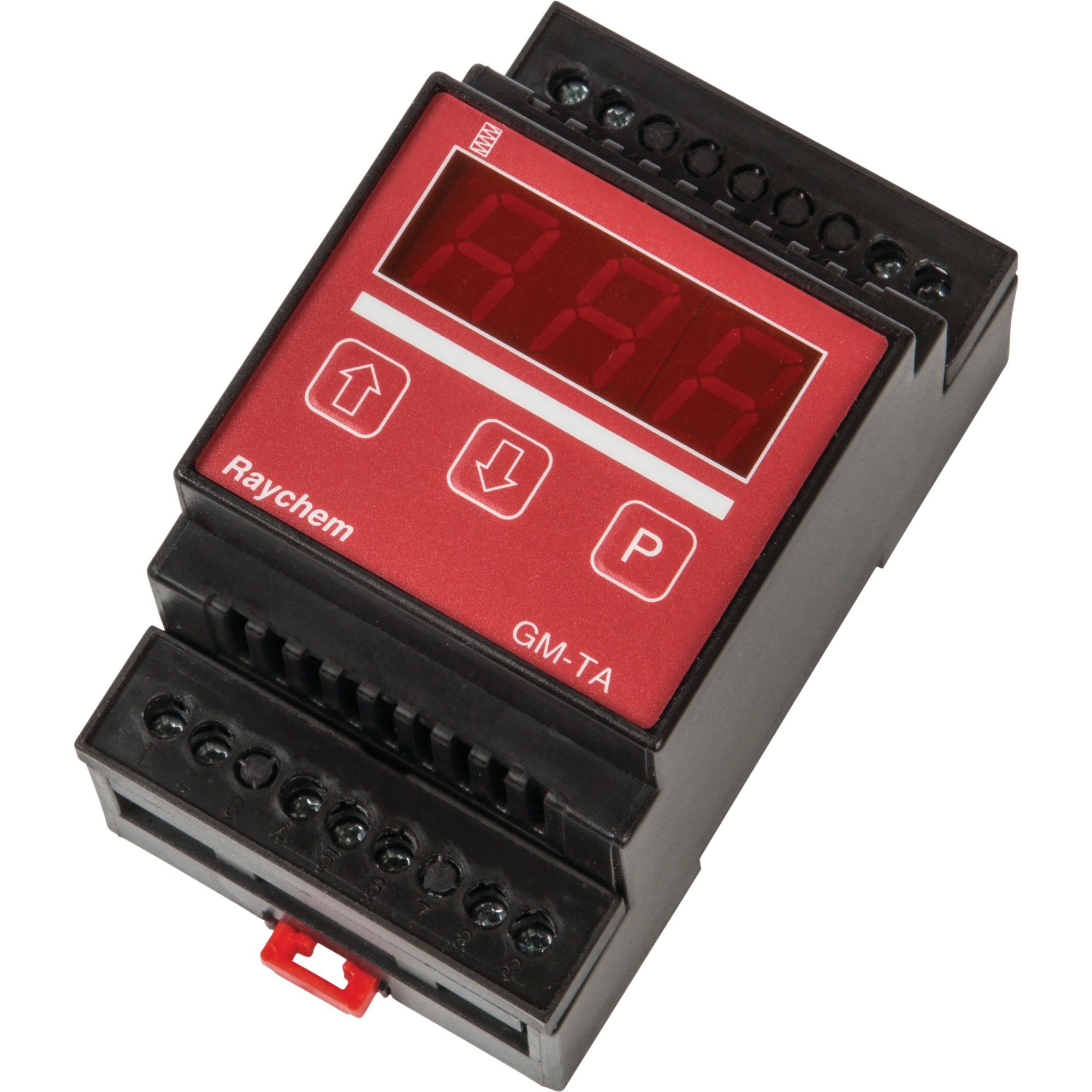

GM-TA

Raychem GM-TA is an electronic thermostat for small roof de-icing applications, gutter lengths up to 30 m. Available with outdoor junction box (GM-TA-OUTDOOR-BOX) and spare ambient sensor (GM-TA-AS).

Details

Features

  • Simple and fast to install: DIN rail mounted in panel
  • Energy saving: ambient control, double temperature set points
  • Safe: adjustable post heating time
  • Reliable during long life: 6 year extended product warranty available

Specifications

Adjustment Range: -13 - 23 °F
Adjustment Range, Frost Protection: 32 - 43 °F
Alarm Relay: Switch-Over Contact, Potential-Free, max 8 A @ 230 VAC
Ambient Temperature: -13 - 104 °F
Hysteresis/Differential: +/–1K
IP Rating: IP20
Material: ABS
Mounting: DIN Rail
Output Relay: 16 A @ 230 VAC
Sensor Cable Diameter: 0.157 in
Sensor Type: NTC, 2KΩ @ 25°C
Supply Voltage: 207 - 253 V
Terminal Size: 2.5 mm²
