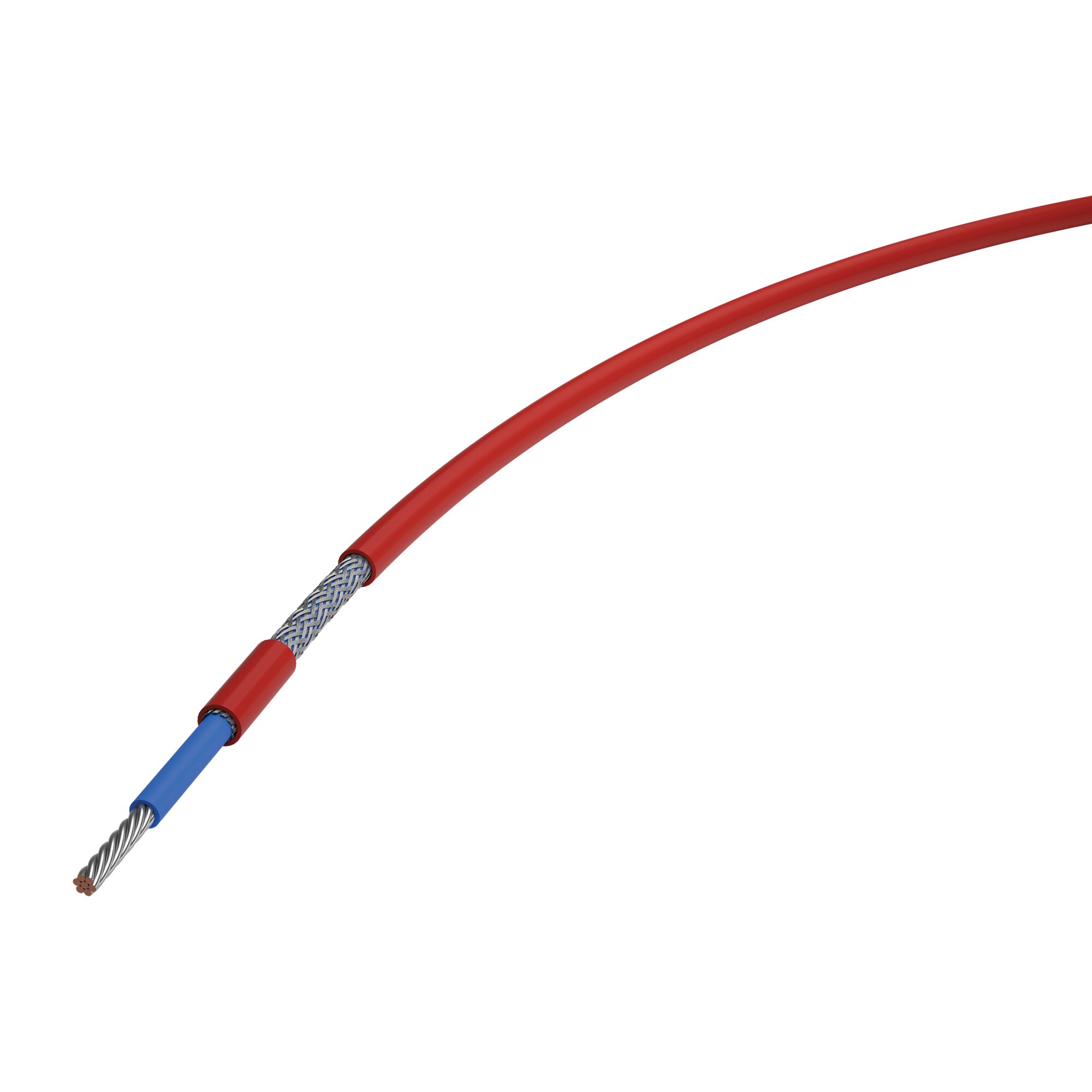

XPI-S Series Heating Cable, High Temperature, 7 J

Raychem XPI polymer insulated (PI) series trace heating cables provide freeze protection and process temperature maintenance on long transfer lines, vessels and instrumentation lines. XPI-S: up to 260⁰C continuous and 300⁰C intermittent exposure. Can be used in both hazardous and safe environments.

Details

Features

  • Fast installation: very flexible cable and easy termination components
  • Safe and efficient in operation: stabilized electrical insulation by controlling cold flow
  • Reliable during long life: hybrid PTFE/PFA reduces internal mechanical/thermal stress buildup, 7 J impact resistance, 10 year product warranty available

Specifications

Area Classification: Non-Hazardous; Hazardous
Color: Red
Max Continuous Exposure Temperature, Power Off: 500 °F
Max Cumulative Hours for Intermittent Exposure: 1000 h
Max Intermittent Exposure Temperature, Power Off: 572 °F
Max Power Output: 10.5 W/ft
Min Clearance: 0.79 in
Min Installation Temperature: -94 °F
Outer Jacket Material: PTFE
Supply Voltage: 0 - 750 V
