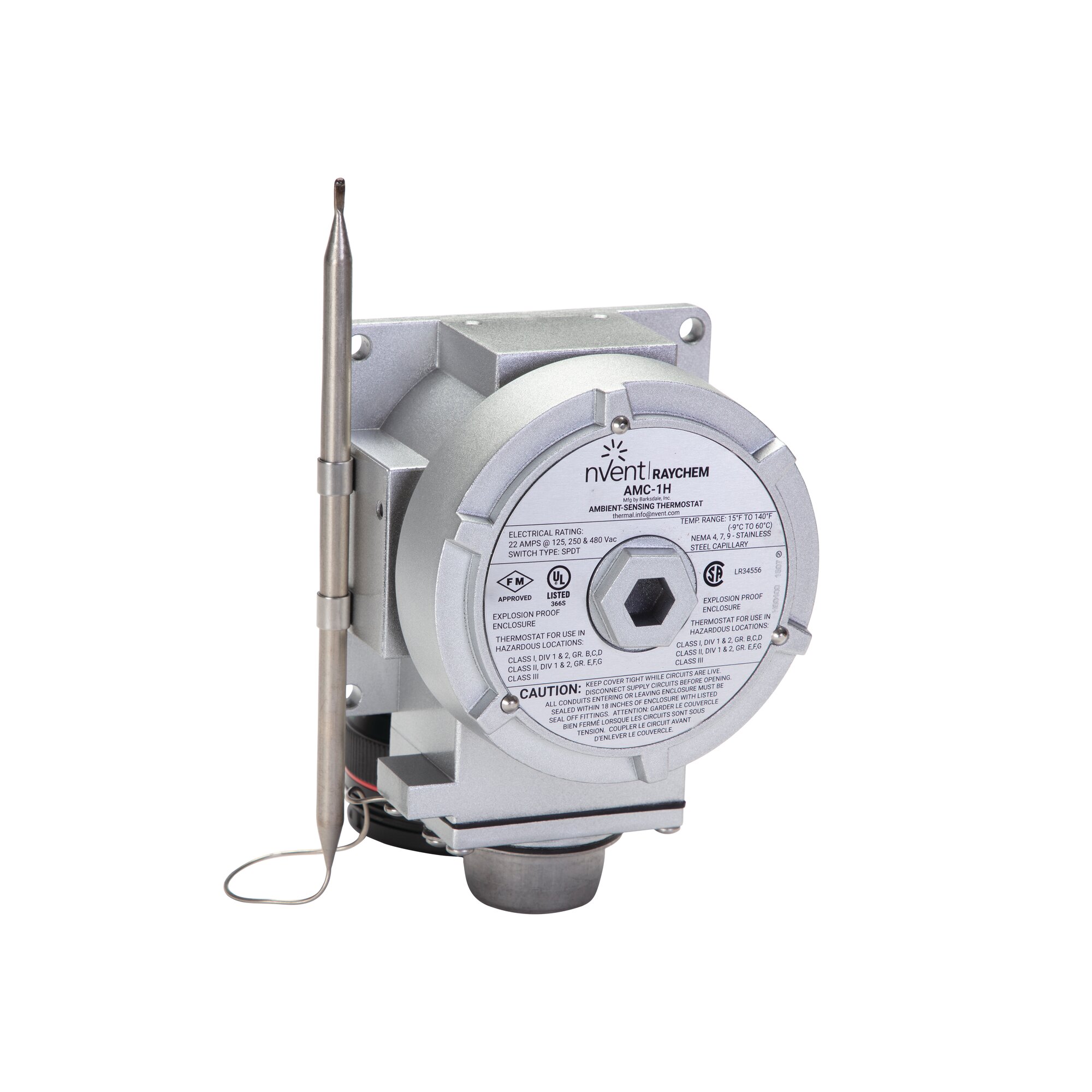

AMC-1H Mechanical Thermostat

Raychem AMC-1H is an ambient-sensing thermostat designed to control heat-tracing systems used for freeze protection in hazardous locations. Used to control a single heat tracing circuit or switch multiple circuits with a contactor, it has an adjustable set point.

Details

Features

  • Simple to install and operate, single cable entry through 3/4"/19 mm NPT conduit hub
  • Energy saving, ambient sensing control thermostat
  • Adjustable set point: -15 °F to 140 °F/–9 °C to 60 °C
  • Electrical rating and switch: 22 A at 125/250/480 VAC, SPDT switch
  • Enclosure: NEMA 4, 7, 9 lacquer-coated cast aluminum housing, stainless steel hardware
  • Reliable during long life

Specifications

Area Classification: Non-Hazardous; Hazardous
Controller Temperature Setting: 15 - 140 °F
Current Rating: 22 A
Depth (D): 4 in
Height (H): 6.6 in
Material: Aluminum
Max Measuring Range: 160 °F
NEMA Rating: 4
Thermostat Type: Mechanical Thermostat
Width (W): 4.5 in
