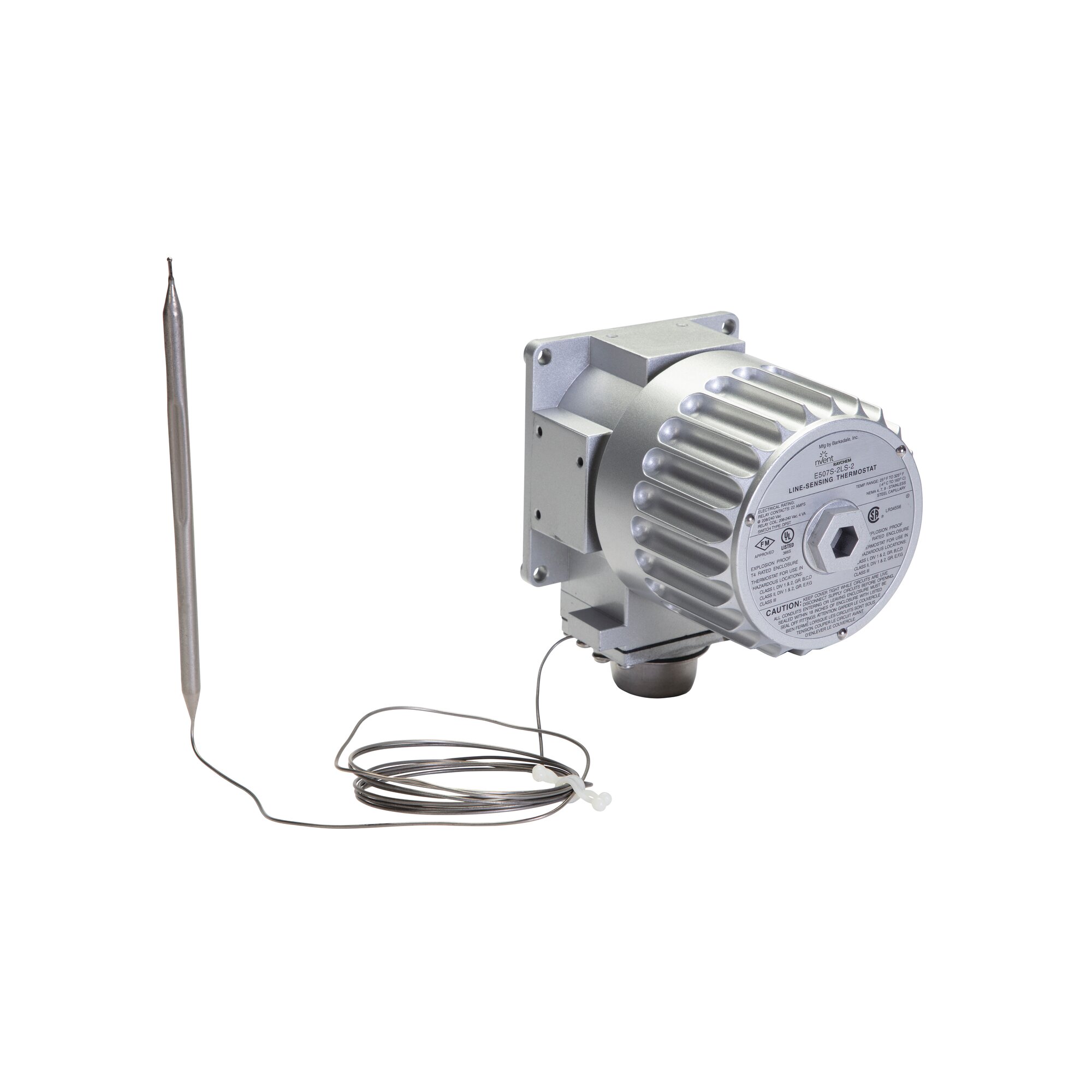

E507S-2LS-2 Mechanical Thermostat

Raychem E507S-2LS-2 is a line-sensing thermostat designed to control heat tracing systems in hazardous locations. It senses pipe or tank wall temperatures and is used to control one heat-tracing circuit directly, functioning as a double-pole single-throw (DPST) switch, opening and closing the electrical connection to both heating cable bus wires.

Details

Features

Simple to install and operate, single cable entry through 3/4"/19 mm NPT conduit hub
Energy saving, line sensing control thermostat
Adjustable set point: 25 °F to 325 °F/–4 °C to 163 °C
Electrical rating and switch: 22 A at 208-240 VAC, DPST switch
Enclosure: NEMA 4, 7, 9 lacquer-coated cast aluminum housing, stainless steel hardware
Reliable during long life
