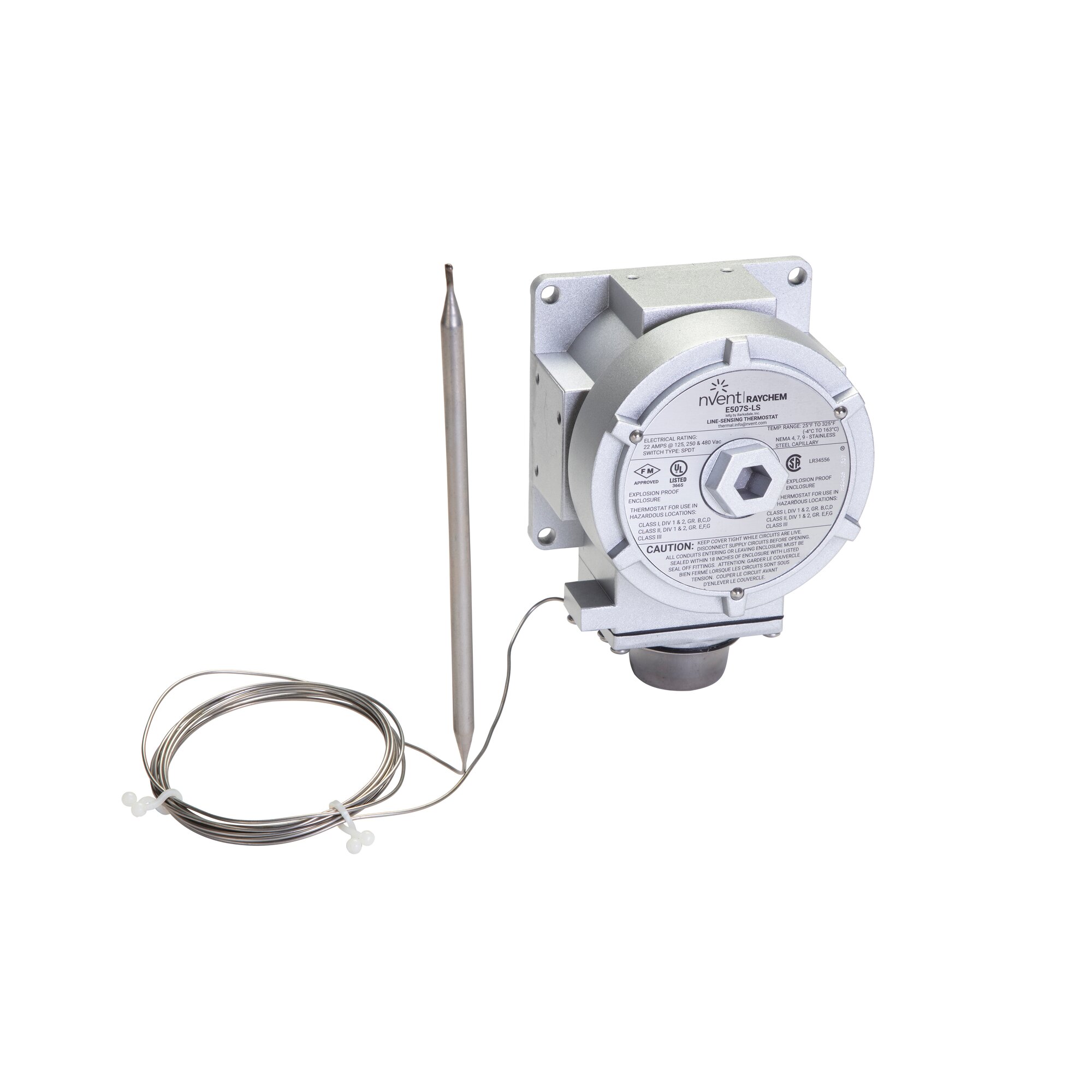

E507S-LS Mechanical Thermostat

Raychem E507S-LS is a line-sensing thermostat designed to control heat tracing systems in hazardous locations. The E507S-LS senses pipe or tank wall temperatures, used to control a single heat tracing circuit or switch multiple circuits with a contactor, it has an adjustable set point. Also used to indicate low temperature or high temperature alarm conditions.

Details

Features

  • Simple to install and operate, single cable entry through 3/4"/19 mm NPT conduit hub
  • Energy saving, line sensing control thermostat
  • Adjustable set point: 25 °F to 325 °F/–4 °C to 163 °C
  • Electrical rating and switch: 22 A at 125/250/480 VAC, SPDT switch
  • Enclosure: NEMA 4, 7, 9 lacquer-coated cast aluminum housing, stainless steel hardware
  • Reliable during long life

Specifications

Controller Temperature Setting: -40 - 325 °F
Current Rating: 22 A
Depth (D): 4 in
Height (H): 6.6 in
Material: Aluminum
Max Measuring Range: 420 °F
NEMA Rating: 4
Thermostat Type: Mechanical Thermostat
Width (W): 4.5 in
