Overview
SC Series, Above Insulation Splice Kit, Direct (No cold lead)

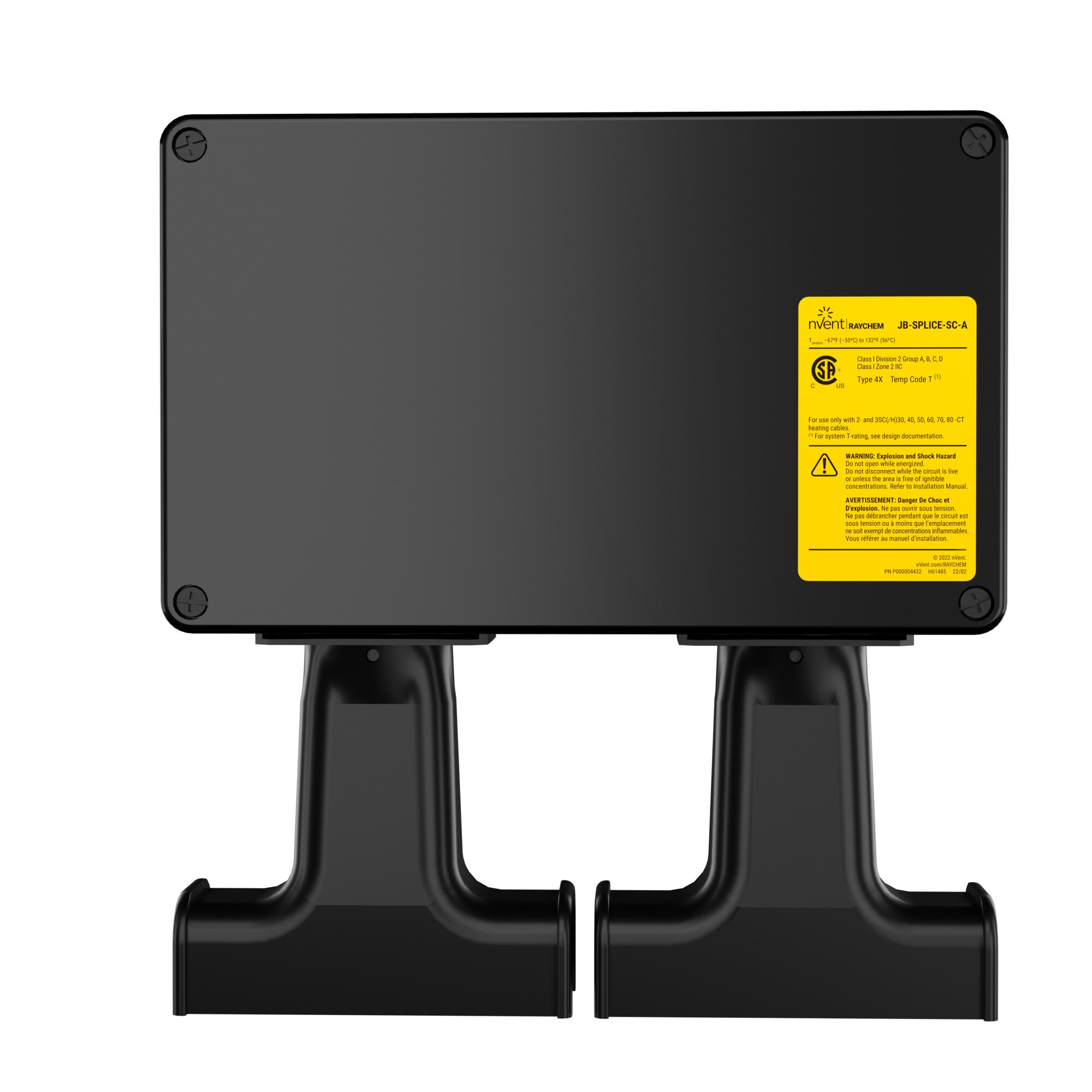

Raychem JB-SPLICE SC-A is a splice box that integrates a support bracket and insulation entry kit by using a hollow stand to feed the heating cable into the junction box .
Details
Features
- Splice kit for all 2SC and 3SC heaters
- Simplified Bill of Material by eliminating colds leads, support brackets and insulation entry kits
- Connections are made directly into Cage clamp terminals which are simple to use and very reliable
- Hazardous areas approved
- Design validation for specific applications, fully supported by nVent design software TraceCalc Pro
Specifications
Ambient Temperature: -67 - 133 °F
Area Classification: Non-Hazardous; Hazardous
Cable Entry: N.A.
Connection Clamp Quantity: 5
Connection Type: Cold Applied
Cover Attachment: Screwed
Halogen Free: Yes
Inlet Quantity: 0
IP Rating: IP66
Knockouts Included: No
Material: Glass Fiber Reinforced Polymer
Max Conductor Cross Section: 0.025 in²
Mounting: On Pipe
