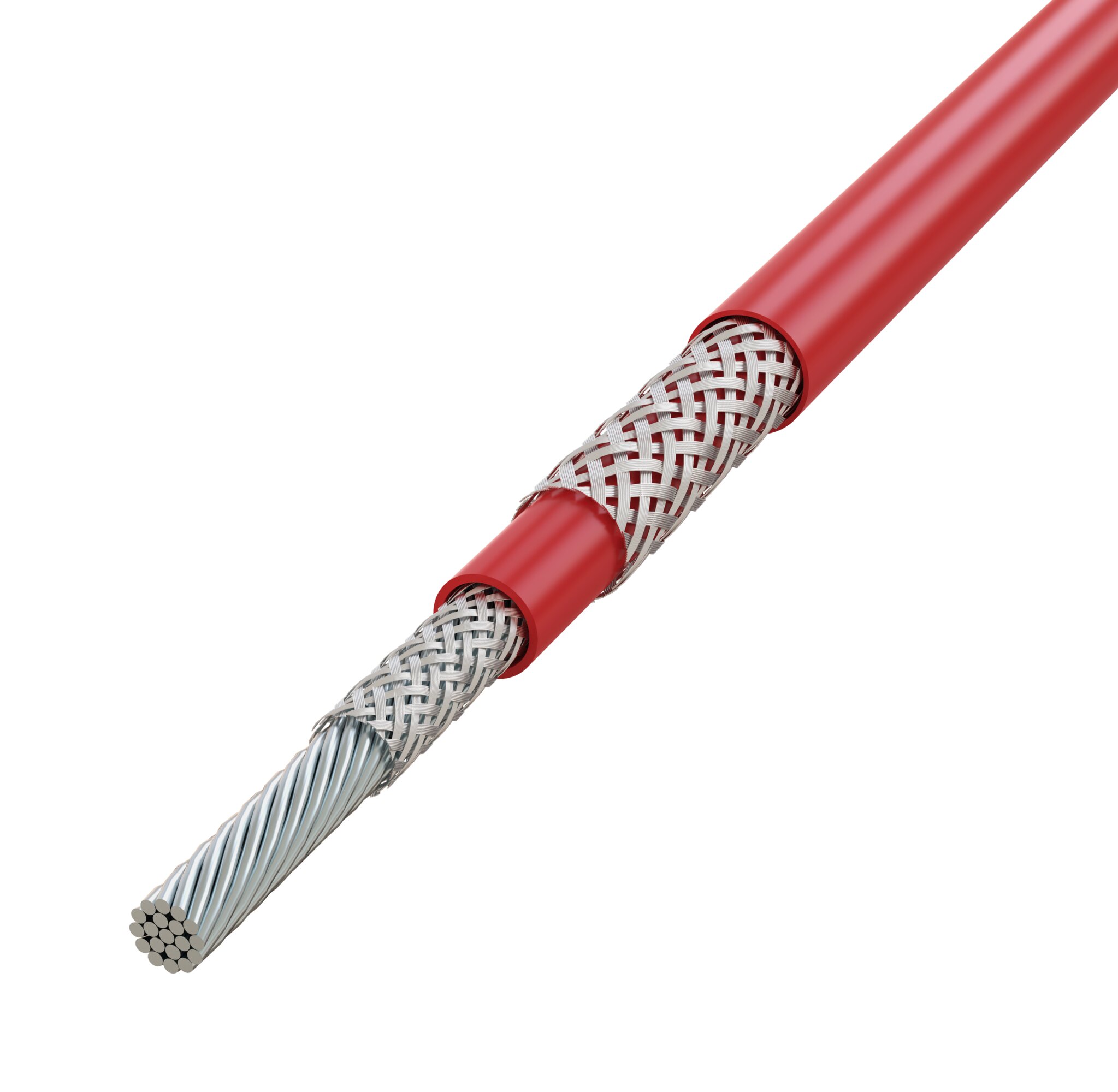

Product thumbnail 1

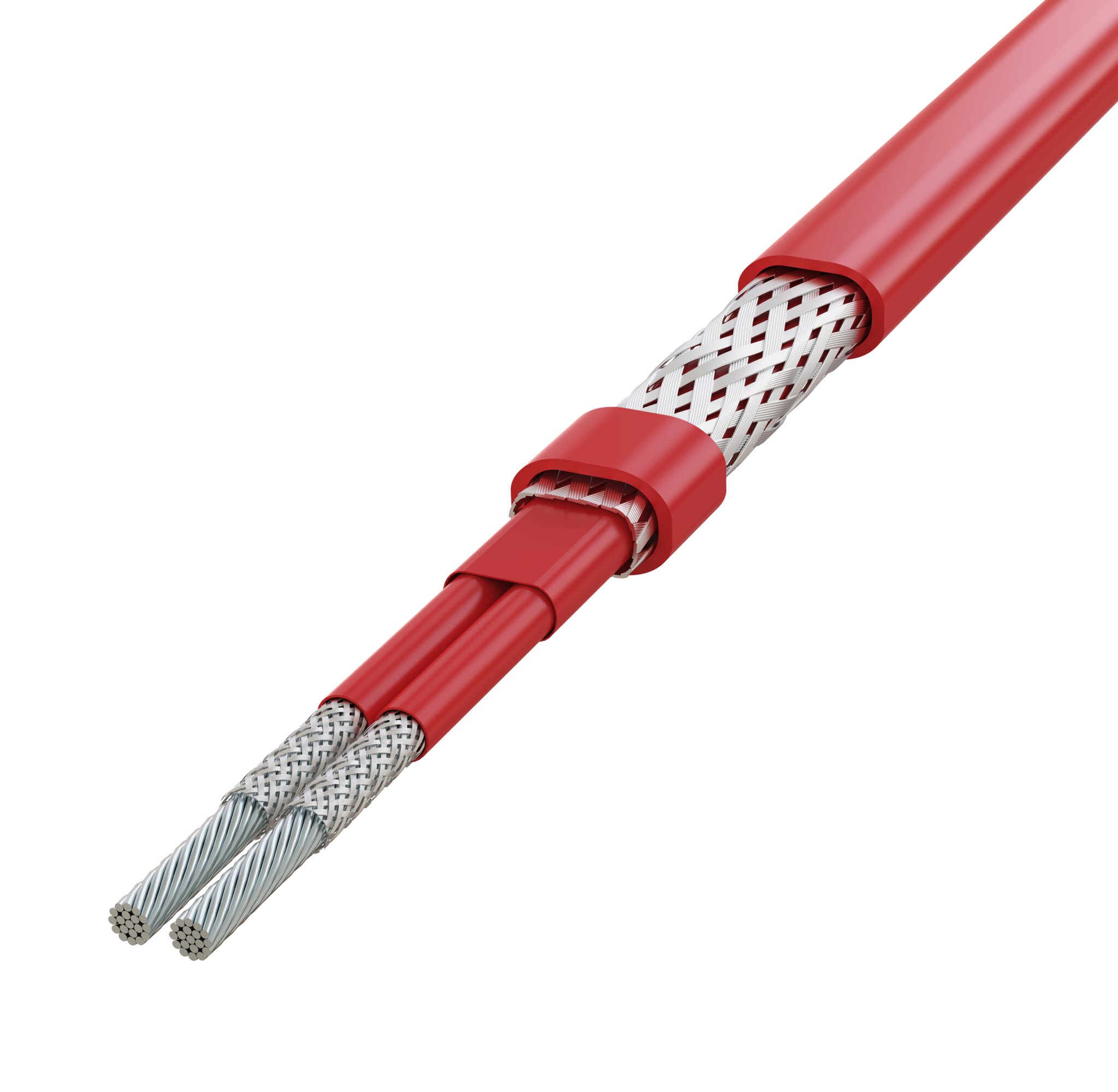

Product thumbnail 2

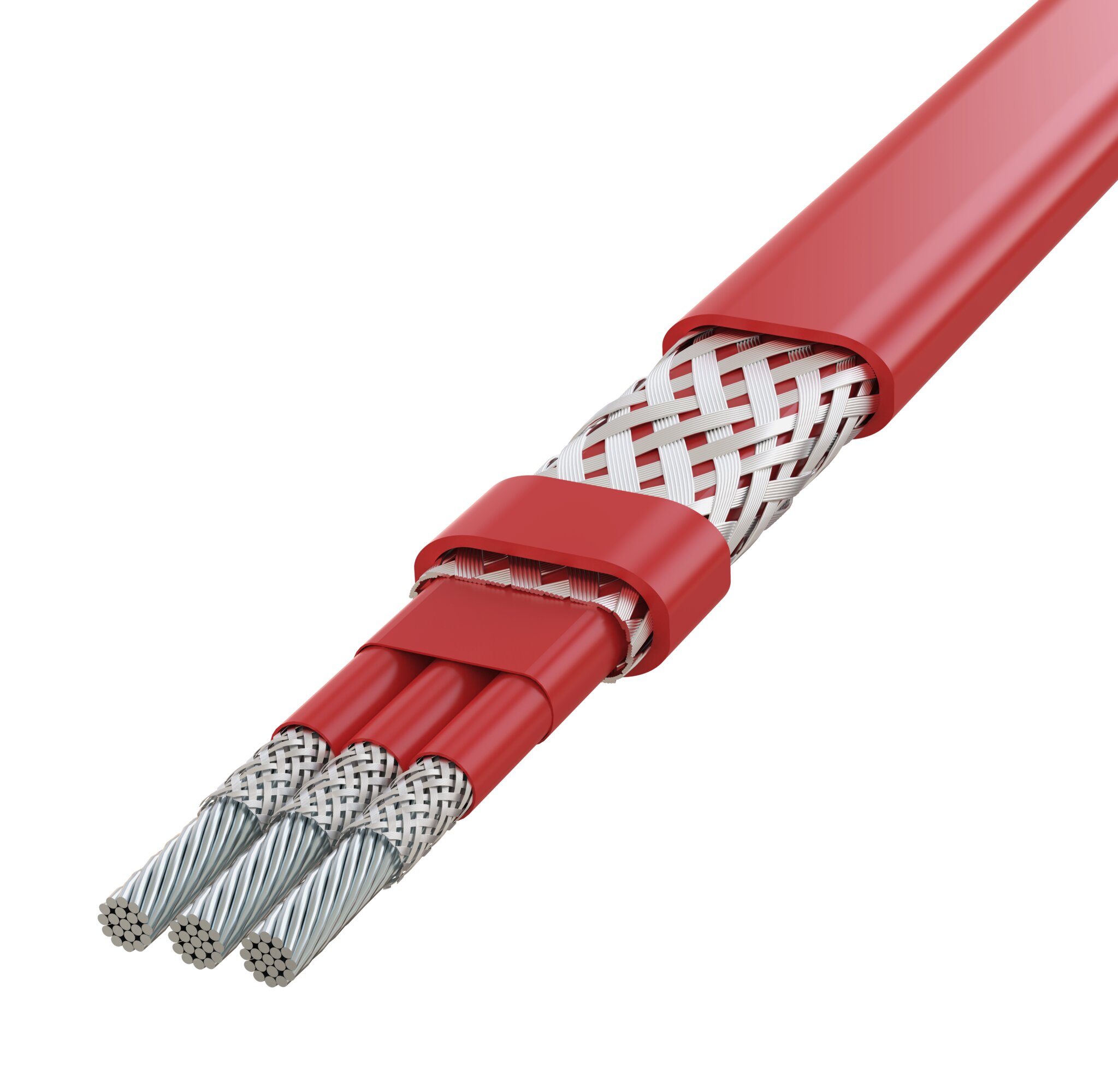

Product thumbnail 3

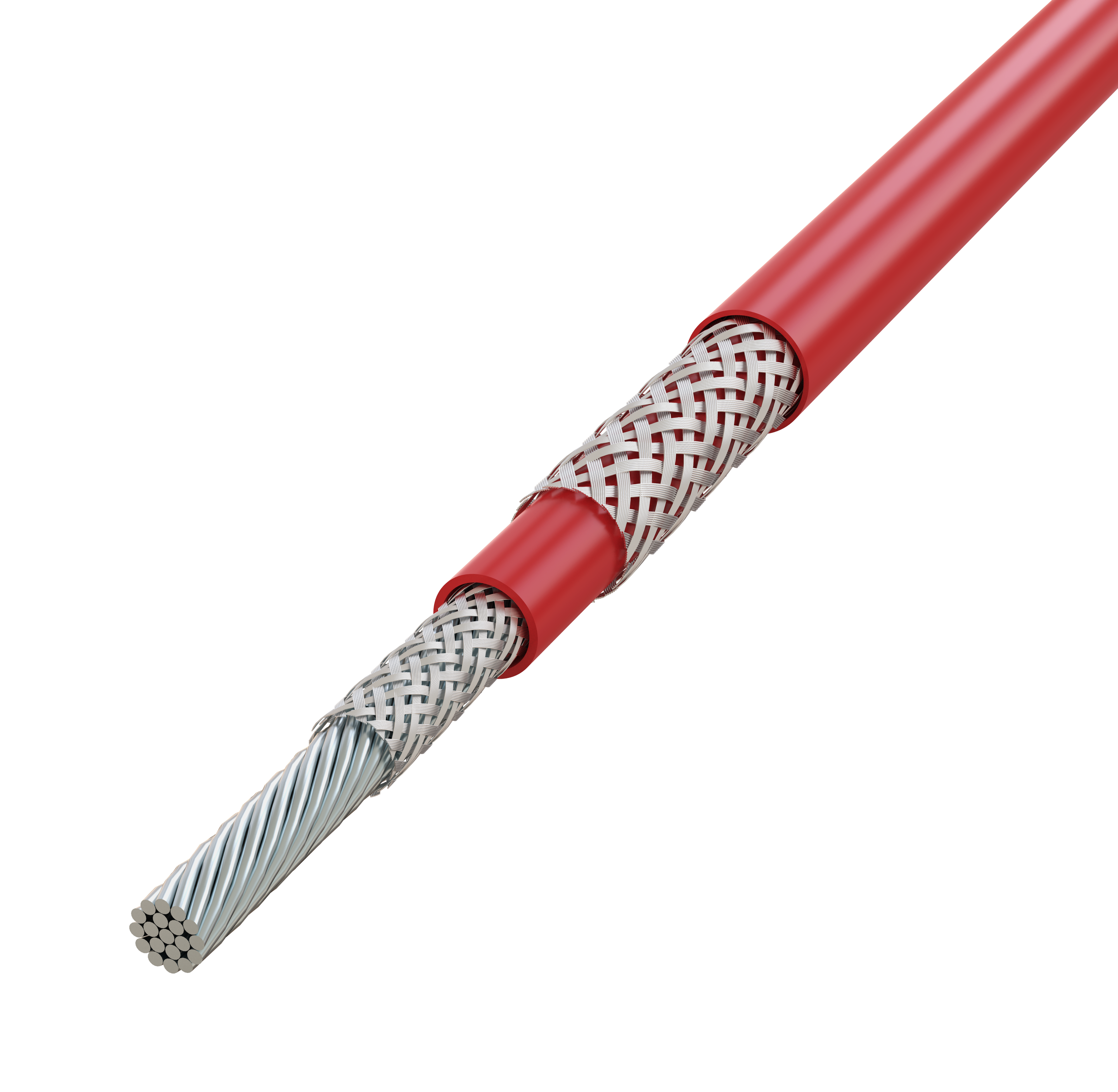

Product main view

SC/H Series Heating Cable, Hi-Temp, Hazardous Area

Raychem SC/H series-resistance trace heating cables provide freeze protection and high-temperature maintenance for longline heating applications with low heat loss. Available with single/dual/triple conductors , they can be used for continuous circuit lengths to 12,000 ft/3659 m powered from a single source, capable of supporting voltages up to 600 VAC. and suitable for continuous exposure to temperatures up to 482 °F/250 °C. Approved for use in hazardous areas. The fluoropolymer outer jacket provides high chemical resistance against aggressive organics and corrosives.

Details

Features

  • Fast installation, with long circuit length capability: up to 12,000 ft/3659 m from a single power source
  • Safe and efficient in operation, supports high voltages up to 600 VAC
  • Reliable during long life: 10 year extended product warranty available, maintenance free

Specifications

Area Classification: Non-Hazardous; Hazardous
Color: Red
Conductor Quantity: 1
Max Continuous Exposure Temperature, Power Off: 482 °F
Max Intermittent Exposure Temperature, Power Off: 482 °F
Max Power Output: 12 W/ft
Min Bending Radius: 1 in
Min Installation Temperature: -40 °F
Outer Jacket Material: Fluoropolymer
Supply Voltage: 0 - 600 V

Nominal Resistance @ 68°F / 20°C for 3 conductor cable, resistance values are per conductor Max Power Output is typical value, depending on application
