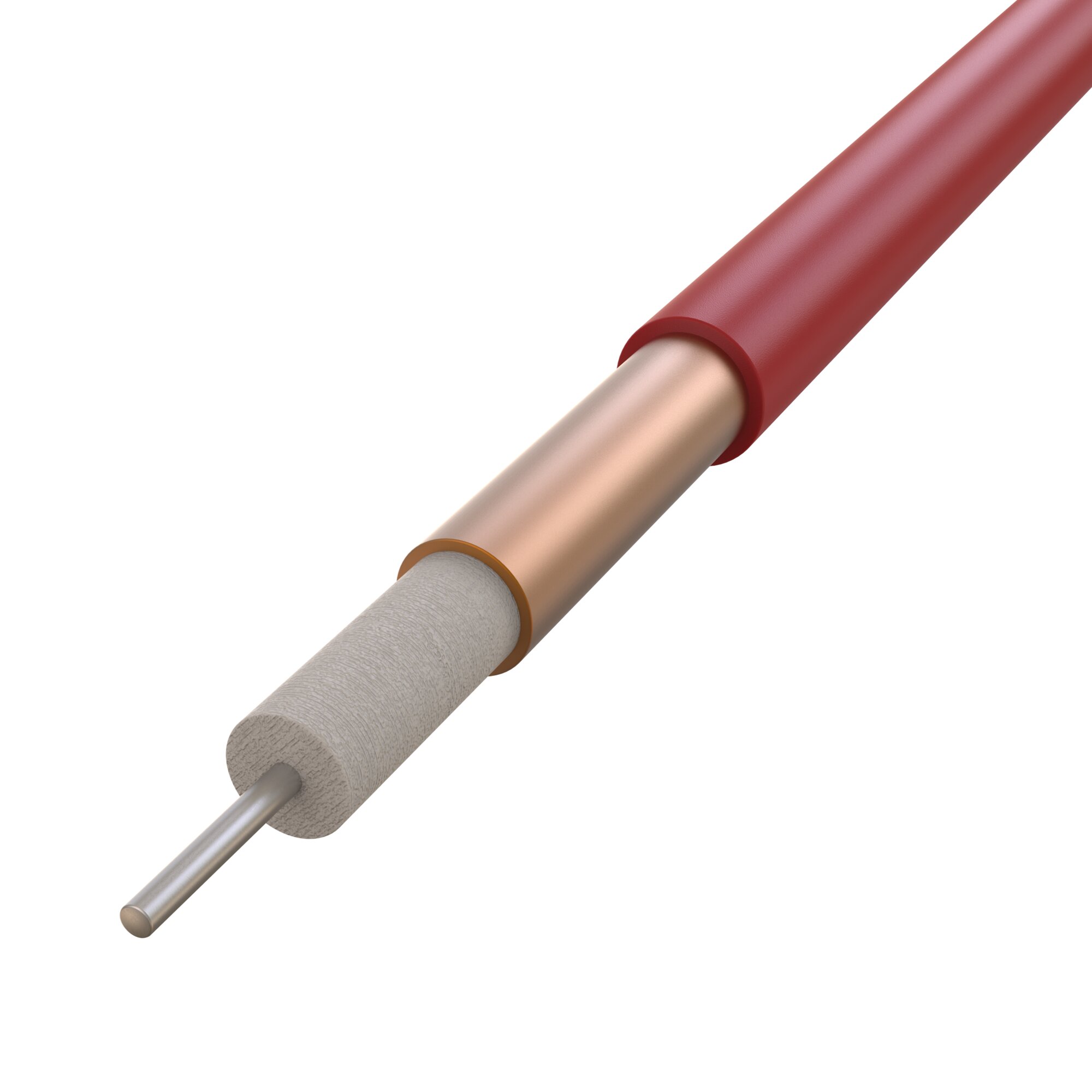

Standard MI Heating Cable, Type SUB

Raychem MI Standard MI Heating Cable (configuration type SUB) provides surface snow melting in concrete, asphalt and pavers. Factory assembled, they are ready to connect to a junction box. Copper sheathed and covered with an extruded Low Smoke Zero Halogen (LSZH) jacket.

Details

Features

  • Simple to design
  • Easy to install, factory assembled: copper sheath provides an ideal ground path
  • Reliable during long life: 10 year product warranty available, maintenance free

Specifications

Area Classification: Non-Hazardous
Color: Red
Conductor Material: Copper or Copper Alloy
Conductor Quantity: 1
Ground Path Type: Sheath
Heating Cable Technology: Series Mineral Insulated
Min Installation Temperature: -4 °F
Nominal Voltage: 600 V
Outer Jacket Material: Low Smoke Zero Halogen
Sheath Material: Seamless Copper
