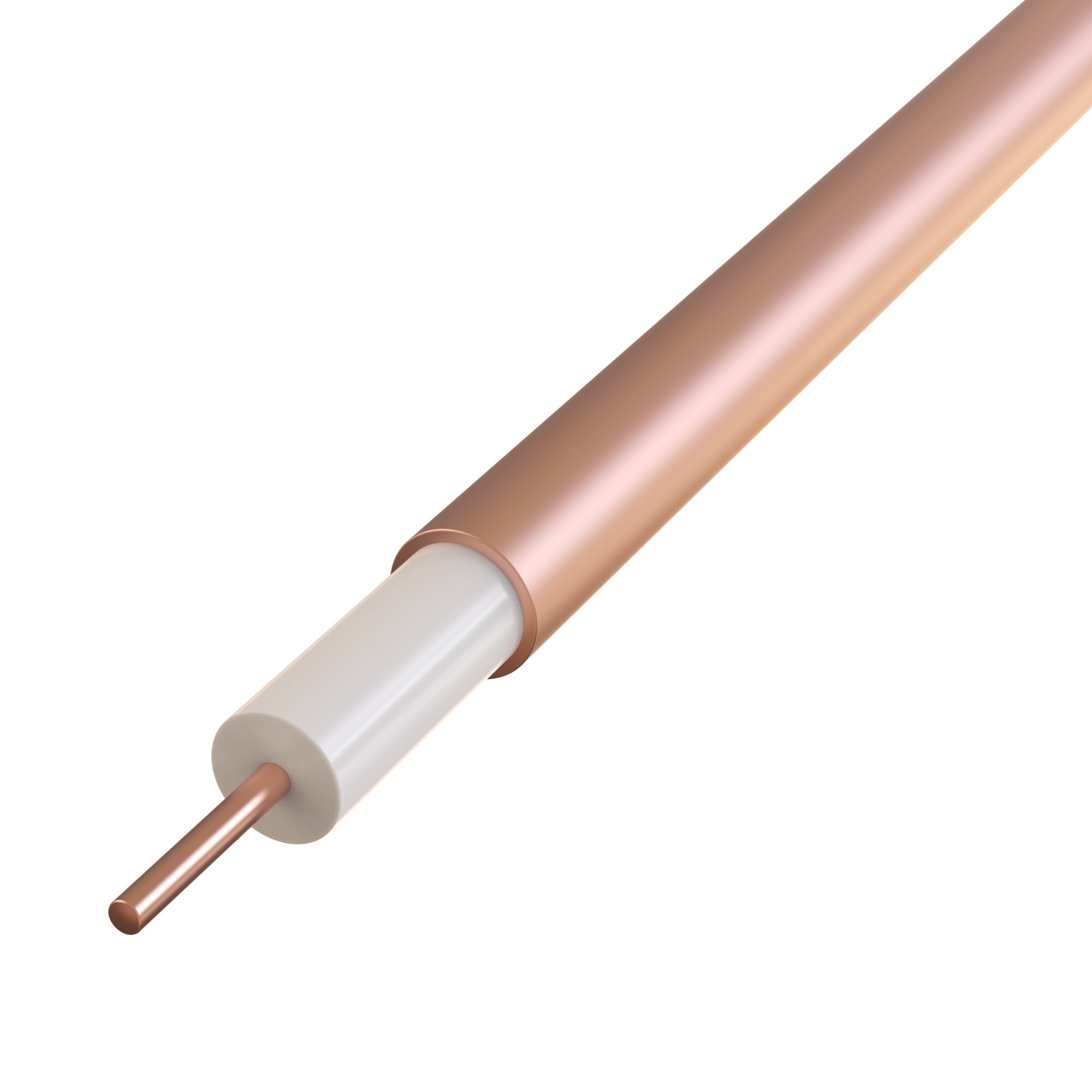

MI Series Bare Copper Heating Cable

Raychem mineral insulated (MI) series resistance trace heating cables are used for low temperature maintenance applications such as long pipeline heating, condensation prevention and ramp heating. Copper sheath with continuous exposure temperatures to 392 °F/200 °C and typical power outputs to 20 W/ft (65 W/m). Approved for use in hazardous areas.

Details

Features

  • Reduced total installed cost
  • Reduced power supply costs: lower start up currents compared with other technologies
  • Simple controls: current monitoring on series resistance provides instant visibility on critical circuits
  • Fast track/expedited service not available for configured heating units

Specifications

Area Classification: Non-Hazardous; Hazardous
Insulation Material: Magnesium Oxide
Max Continuous Exposure Temperature, Power Off: 392 °F
Max Power Output: 20 W/ft
Min Cable Spacing: 0.98 in
Min Installation Temperature: -76 °F
Sheath Material: Copper
Supply Voltage: 0 - 300 V
